Super-Inductance 634A

Super-Inductance 634A; Philips France; (ID = 216367) Radio

Super-Inductance 634A; Philips France; (ID = 216368) Radio

Super-Inductance 634A; Philips France; (ID = 1532240) Radio

Super-Inductance 634A; Philips France; (ID = 1532241) Radio

Super-Inductance 634A; Philips France; (ID = 1532242) Radio

Super-Inductance 634A; Philips France; (ID = 1532243) Radio

Super-Inductance 634A; Philips France; (ID = 1532244) Radio

Super-Inductance 634A; Philips France; (ID = 1532245) Radio

Super-Inductance 634A; Philips France; (ID = 1532246) Radio

Super-Inductance 634A; Philips France; (ID = 1532247) Radio
Super-Inductance 634A; Philips France; (ID = 2376687) Radio Super-Inductance 634A; Philips France; (ID = 403794) Radio
Super-Inductance 634A; Philips France; (ID = 403925) Radio Super-Inductance 634A; Philips France; (ID = 403923) Radio
Super-Inductance 634A; Philips France; (ID = 403922) Radio Super-Inductance 634A; Philips France; (ID = 403926) Radio
Super-Inductance 634A; Philips France; (ID = 421705) Radio Super-Inductance 634A; Philips France; (ID = 421707) Radio
Super-Inductance 634A; Philips France; (ID = 421708) Radio Super-Inductance 634A; Philips France; (ID = 421709) Radio
Use red slider bar for more.
Super-Inductance 634A; Philips France; (ID = 2376687) Radio
Philips France;: Super-Inductance 634A [Radio] ID = 2376687 1400x1514
Select picture or schematic to display from thumbnails on the right and click for download.
For model Super-Inductance 634A, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1933/1934 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: E452T E452T E444 C443 506
Main principle TRF without regeneration; 2 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 103-253 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21.5 cm = 8.5 inch
Power out 2.8 W (unknown quality)
from Radiomuseum.org Model: Super-Inductance 634A - Philips France; Paris
Material Wooden case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 430 x 490 x 290 mm / 16.9 x 19.3 x 11.4 inch
Notes

Monoréglage, anti-fading, régulateur de sensibilité. Prises pour pickup et HP supplémentaire.

Net weight (2.2 lb = 1 kg) 16.7 kg / 36 lb 12.5 oz (36.784 lb)
Price in first year of sale 2'850.00 FRF
Collectors' prices
Literature/Schematics (1) Schémathèque Toute la Radio (STR)

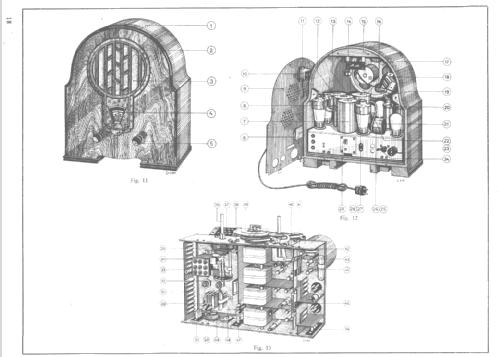

Literature/Schematics (2) -- Original-techn. papers.

Model page created by Peter Hoddow. See "Data change" for further contributors.
