Superinduttanza 634A

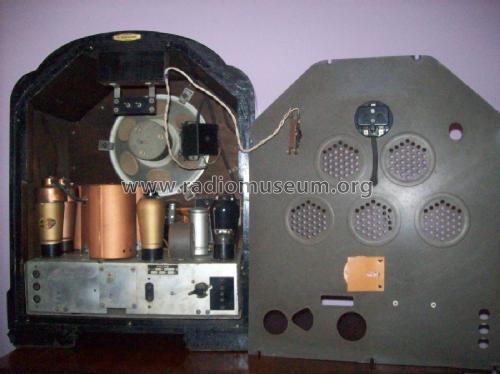

Superinduttanza 634A; Philips Italy; (ID = 1890358) Radio Superinduttanza 634A; Philips Italy; (ID = 1848020) Radio
Superinduttanza 634A; Philips Italy; (ID = 1848008) Radio Superinduttanza 634A; Philips Italy; (ID = 1848024) Radio
Superinduttanza 634A; Philips Italy; (ID = 228912) Radio Superinduttanza 634A; Philips Italy; (ID = 228502) Radio
Superinduttanza 634A; Philips Italy; (ID = 228501) Radio Superinduttanza 634A; Philips Italy; (ID = 1847999) Radio

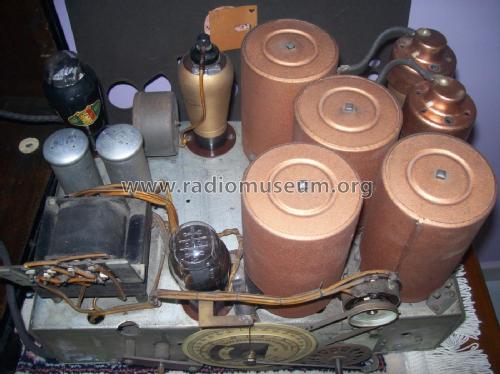

Superinduttanza 634A; Philips Italy; (ID = 1848001) Radio Superinduttanza 634A; Philips Italy; (ID = 1848031) Radio
Use red slider bar for more.

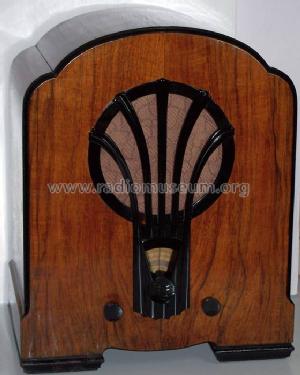

Superinduttanza 634A; Philips Italy; (ID = 1890358) Radio
Philips Italy;: Superinduttanza 634A [Radio] ID = 1890358 560x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Superinduttanza 634A, Philips Italy; Milano (MI)

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1933/1934 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: E446 E452 E444 C443 506
Main principle TRF without regeneration; 2 AF stage(s)
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch
Power out 2.8 W (unknown quality)
from Radiomuseum.org Model: Superinduttanza 634A - Philips Italy; Milano MI
Material Wooden case
Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 410 x 530 x 280 mm / 16.1 x 20.9 x 11 inch
Net weight (2.2 lb = 1 kg) 18 kg / 39 lb 10.4 oz (39.648 lb)
Source of data Guida Pratica Antique Radio II (2000)
Mentioned in Philips Radio

Model page created by Ernst Röggla. See "Data change" for further contributors.
