636A

636A; Philips Electrical, (ID = 1486895) Radio 636A; Philips Electrical, (ID = 1486896) Radio
Use red slider bar for more.
636A; Philips Electrical, (ID = 1486895) Radio
Philips Electrical,: 636A [Radio] ID = 1486895 933x1066
Select picture or schematic to display from thumbnails on the right and click for download.
For model 636A, Philips Electrical, Lamps, Industrial - Miniwatt; London:

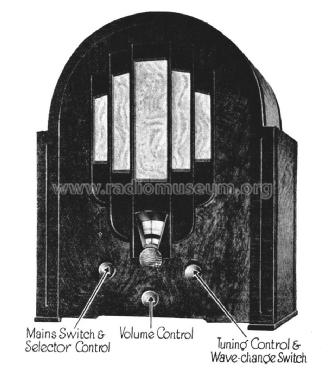

Picture from Philips Dealers Handbook 1934.

Country:  Great Britain (UK)
Manufacturer / Brand:  Philips Electrical, Lamps, Industrial - Miniwatt; London
Year: 1933 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: MM4V MM4V S4VB SD4_Mullard 994V 994V Pen4VA 1821
Main principle TRF without regeneration
Tuned circuits 4 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 100-260 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 636A - Philips Electrical, Lamps,
Material Wooden case
Dimensions (WHD) 590 x 430 x 285 mm / 23.2 x 16.9 x 11.2 inch
Price in first year of sale 24.13 UKP
Mentioned in Philips Dealers Handbook 1934

Model page created by Gidi Verheijen. See "Data change" for further contributors.
