653M; Philips Italy; (ID = 2160101) Radio

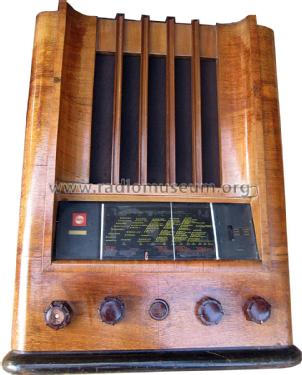

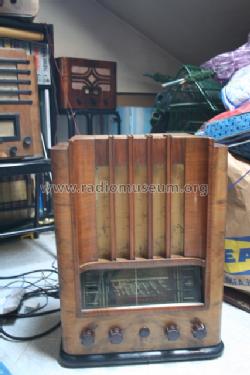

Philips Italy;: 653M [Radio] ID = 2160101 959x1200
Select picture or schematic to display from thumbnails on the right and click for download.
For model 653M, Philips Italy; Milano (MI)

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: WE21 WE25 WE26 WE30 WE51
Main principle Superheterodyne (common); ZF/IF 115 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details Visual Tuning Indicator pre Eye
Power type and voltage Alternating Current supply (AC) / 110; 125; 150; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil)
Power out
from Radiomuseum.org Model: 653M - Philips Italy; Milano MI
Material Wooden case
Shape Tablemodel, high profile (upright - NOT Cathedral nor decorative).
Dimensions (WHD) 420 x 545 x 265 mm / 16.5 x 21.5 x 10.4 inch
Notes

Alcuni schemi riportano erroneamente MF 468 kHz anziché 115 kHz.

Indicatore di sintonia a proiezione d'ombra.
Controllo di tono. Ingresso per giradischi.

Net weight (2.2 lb = 1 kg) 13.5 kg / 29 lb 11.8 oz (29.736 lb)
Price in first year of sale 1'300.00 ITL
Source of data Il Radio Libro (E.D. Ravalico) Edizioni Hoepli
Mentioned in Guida Pratica Antique Radio II (2000)
Literature/Schematics (1) Riparazioni - Scuola Radio Elettra (pag. P1)
Literature/Schematics (2) -- Schematic (Schemario degli Apparecchi Radio. D.E. Ravalico – Hoepli – 1944.)

Model page created by Alessandro De Poi. See "Data change" for further contributors.
