655A

655A; Philips Radios - (ID = 293797) Radio

655A; Philips Radios - (ID = 294518) Radio

655A; Philips Radios - (ID = 5203) Radio
655A; Philips Radios - (ID = 97543) Radio 655A; Philips Radios - (ID = 236955) Radio
655A; Philips Radios - (ID = 97544) Radio 655A; Philips Radios - (ID = 604497) Radio
655A; Philips Radios - (ID = 604498) Radio 655A; Philips Radios - (ID = 604500) Radio
655A; Philips Radios - (ID = 604502) Radio 655A; Philips Radios - (ID = 604503) Radio
655A; Philips Radios - (ID = 604504) Radio 655A; Philips Radios - (ID = 604506) Radio
Use red slider bar for more.

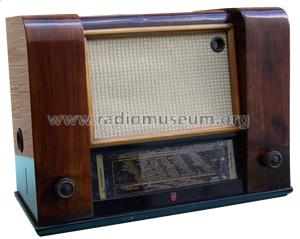

655A; Philips Radios - (ID = 97543) Radio
Philips Radios -: 655A [Radio] ID = 97543 933x699
Select picture or schematic to display from thumbnails on the right and click for download.
For model 655A, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1940/1941 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH3 EF9 EBL1 AZ1
Main principle Superheterodyne (common); ZF/IF 128 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC)
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: 655A - Philips Radios - Deutschland
Material Wooden case
Shape Tablemodel, low profile (big size).
Notes Eingangsbandfilter für MW und LW. Für KW 6 Kreise.
Source of data Radiokatalog Band 1, Ernst Erb
Mentioned in Die Radio-Reparatur (329)
