• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1972–1974

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 131768

• • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors
• BC149 BC149 BC147 BC107 AD161 AD162 BC149 BC149 BC147 BC107 AD161 AD162 OF156 OF156 BY164

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 16 W (undistorted)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

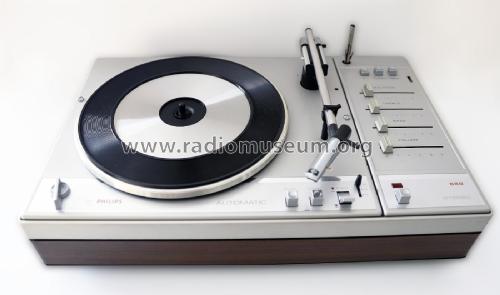

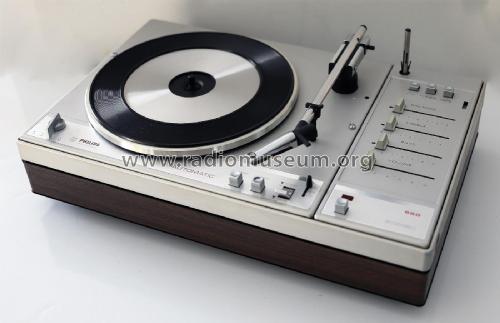

• Model: Stereo-Wechsler-Electrophon 660 22GF660 + 22EG660 [12 Transistoren] - Philips Radios - Deutschland

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 470 x 170 x 305 mm / 18.5 x 6.7 x 12 inch

• Notes

• Ausgangsleistung 2 × 8 Watt.
  Wechsler für max. 6 Platten.
  4 Geschwindigkeiten: 16, 33 1/3, 45 und 78 U/min.
  Keramik-Tonabnehmer GP204 (Saphir) oder GP205 (Diamant).

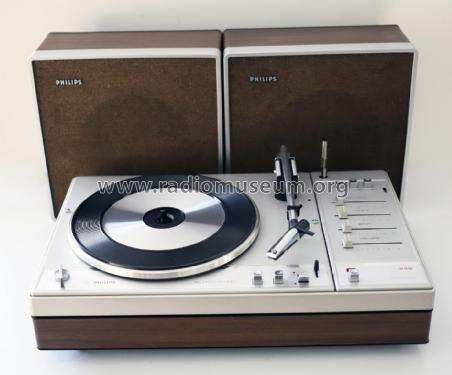

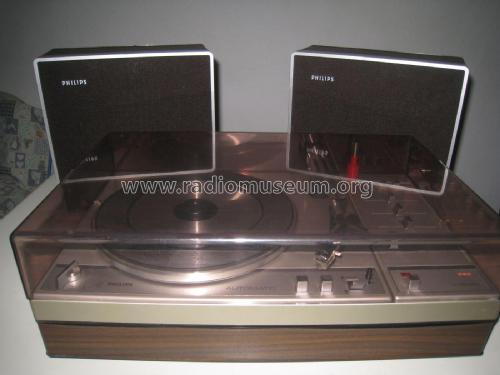

  2 Lautsprecherboxen 22EG660 im Lieferumfang.

  Siehe auch Nachfolger 22GF660 mit 18 Transistoren.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Price in first year of sale
• 539.00 DM

• Mentioned in

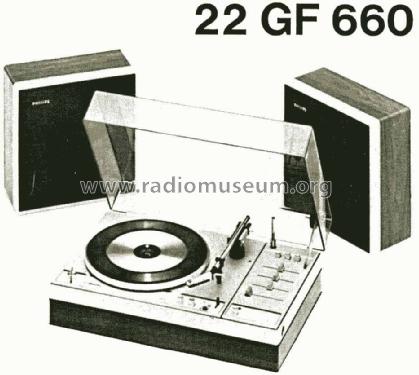

• -- Original prospect or advert

• Literature/Schematics (1)
• -- Original-techn. papers.

• Literature/Schematics (2)
• - - Manufacturers Literature (Preisliste 8-73)

• Author
• Model page created by Hans-Werner Ellerbrock. See "Data change" for further contributors.
