• Year
  • 1938/1939
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 183995

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 473 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands

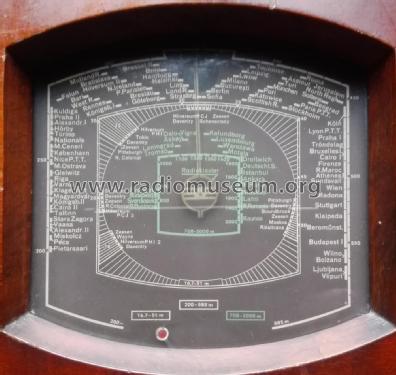

  • Broadcast, Long Wave and Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 660A - Philips; Eindhoven tubes
  • Shape

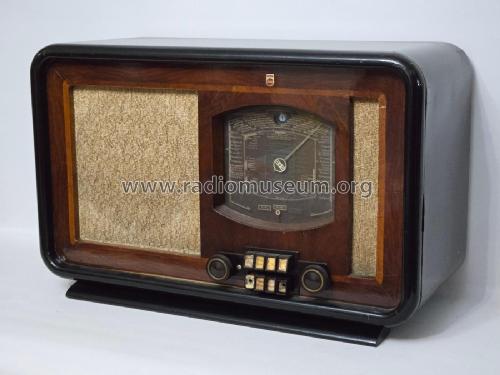

  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 570 x 360 x 240 mm / 22.4 x 14.2 x 9.4 inch
  • Notes

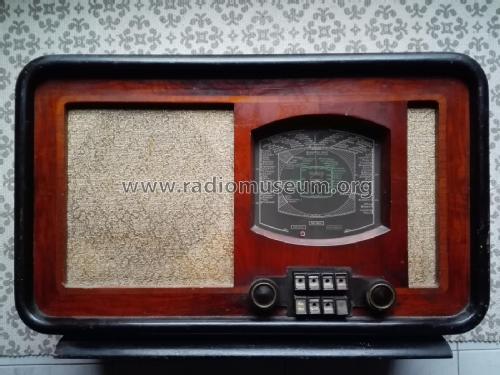

  • 8 tuning preset buttons.
  • Net weight (2.2 lb = 1 kg)
  • 12.8 kg / 28 lb 3.1 oz (28.194 lb)
  • Source of data
  • - - Data from my own collection
