Berceuse 667A
Philips; Eindhoven: Berceuse 667A [Radio] ID = 95906 680x519
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1937/1938 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: EK2 EF5 EBC3 EBL1 EM1 AZ1 |
|---|
| Main principle | Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s) |
|---|---|
| Tuned circuits | 7 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | 4.5 W (unknown quality) |
| from Radiomuseum.org | Model: Berceuse 667A - Philips; Eindhoven tubes |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 495 x 330 x 262 mm / 19.5 x 13 x 10.3 inch |
| Notes | Dial lamps: 3x 8045 (6,3V/0,32A) Für den Betrieb im Gleichstromnetz kann der Wechselrichter 7881C eingebaut werden. |
| Net weight (2.2 lb = 1 kg) | 12.5 kg / 27 lb 8.5 oz (27.533 lb) |
| Price in first year of sale | 137.00 hfl |
| Source of data | Overzicht v.de toe te p PHILIPS |
| Mentioned in | Technisch- Commercieel - Radio Vademecum Staleman |

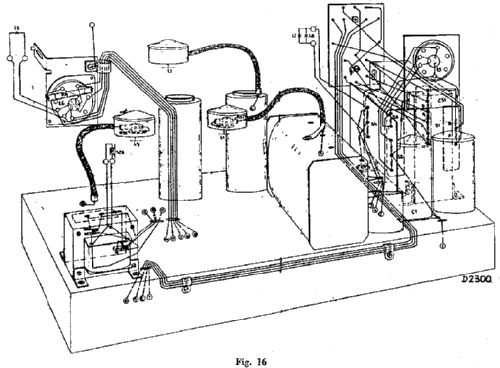

| Literature/Schematics (1) | -- Original-techn. papers. |
Model page created by Iven Müller. See "Data change" for further contributors.
