66RG390 /00 (66RL390 /00)

66RG390 /00 ; Philips, Svenska AB, (ID = 2371367) Radio
66RG390 /00 ; Philips, Svenska AB, (ID = 2371368) Radio 66RG390 /00 ; Philips, Svenska AB, (ID = 2371369) Radio
66RG390 /00 ; Philips, Svenska AB, (ID = 2371371) Radio 66RG390 /00 ; Philips, Svenska AB, (ID = 2373574) Radio
66RG390 /00 ; Philips, Svenska AB, (ID = 2371370) Radio 66RG390 /00 ; Philips, Svenska AB, (ID = 2371372) Radio
Use red slider bar for more.

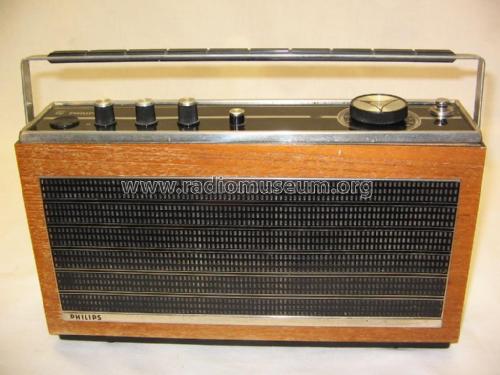

66RG390 /00 ; Philips, Svenska AB, (ID = 2371368) Radio
Philips, Svenska AB,: 66RG390 /00 [Radio] ID = 2371368 1024x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model 66RG390 /00 (66RL390 /00), Philips, Svenska AB, Stockholm

Country:  Sweden
Manufacturer / Brand:  Philips, Svenska AB, Stockholm
Year: 1969 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 9:
Main principle Superhet with RF-stage
Tuned circuits 9 FM circuit(s)
Wave bands FM Broadcast Band Only
Details
Power type and voltage Dry Batteries / 6 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 15 cm = 5.9 inch
Power out 4 W (unknown quality)
from Radiomuseum.org Model: 66RG390 /00 - Philips, Svenska AB, Stockholm
Material Wooden case
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 310 x 70 x 190 mm / 12.2 x 2.8 x 7.5 inch
Notes

Tuner mit 4 einstellbaren Sendern, Rundskala
Demontieranweisung im Batteriefach auf schwedisch

Typschild im Batteriefach nicht eindeutig lesbar, Bezeichnung entweder 66RG390 oder 66RL390

Net weight (2.2 lb = 1 kg) 1.745 kg / 3 lb 13.5 oz (3.844 lb)
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Donat Frey. See "Data change" for further contributors.
