66RL373 /33
Philips Finland - see also Fenno and TeRate
- Country
- Finland
- Manufacturer / Brand
- Philips Finland - see also Fenno and TeRate
- Year
- 1968
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 199234
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 9
- Main principle
- Superheterodyne (common); ZF/IF 455/10700 kHz; 3 AF stage(s)
- Tuned circuits
- 5 AM circuit(s) 7 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Dry Batteries / 4 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 12.5 cm = 4.9 inch
- Power out
- 0.5 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 66RL373 /33 - Philips Finland - see also

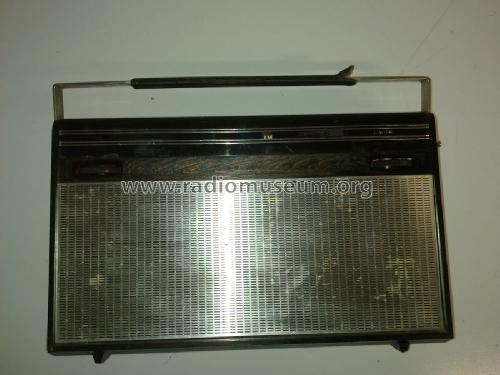

- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 252 x 160 x 70 mm / 9.9 x 6.3 x 2.8 inch
- Notes
- Small ULA-radio. Plastic with leatherette. Germanium transistor.
- Net weight (2.2 lb = 1 kg)
- 2 kg / 4 lb 6.5 oz (4.405 lb)
- Author
- Model page created by Pentti Lamminen. See "Data change" for further contributors.
