Philips Italy;: 682 [Radio] ID = 2358672 873x551
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1940/1941 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Valves / Tubes | 6: EF8 EK2 EF9 EBL1 EM1 WE54 |
|---|
| Main principle | Superhet with RF-stage; ZF/IF 468 kHz |
|---|---|
| Tuned circuits | 7 AM circuit(s) |
| Wave bands | Broadcast, Long Wave and 2 x Short Wave. |
| Details | |
| Power type and voltage | Alternating Current supply (AC) / 110; 120; 140; 160; 170; 220 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: 682 - Philips Italy; Milano MI |
| Material | Wooden case |
| Shape | Tablemodel, low profile (big size). |
| Dimensions (WHD) | 615 x 345 x 245 mm / 24.2 x 13.6 x 9.6 inch |
| Notes | Stesso circuito del Philips 678, ma con altoparlante Elettrodinamico. Chassis identical with Philips 678, but with Electrodynamic speaker. |
| Net weight (2.2 lb = 1 kg) | 15 kg / 33 lb 0.6 oz (33.04 lb) |
| Price in first year of sale | 2'400.00 ITL |
| Source of data | Guida Pratica Antique Radio II (2000) / Radiokatalog Band 1, Ernst Erb |
| Circuit diagram reference | Lange-Nowisch |
| Mentioned in | -- Original prospect or advert |

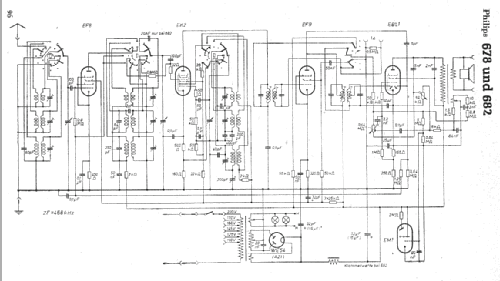

| Literature/Schematics (1) | -- Schematic (Il Manuale del Radiomeccanico G.B. Angeletti – Radio Industria – 1945) |
