744

744; Philips Italy; (ID = 107551) Radio
744; Philips Italy; (ID = 879975) Radio 744; Philips Italy; (ID = 879971) Radio
744; Philips Italy; (ID = 107292) Radio 744; Philips Italy; (ID = 879972) Radio
744; Philips Italy; (ID = 879970) Radio 744; Philips Italy; (ID = 107291) Radio
744; Philips Italy; (ID = 107294) Radio 744; Philips Italy; (ID = 107285) Radio
744; Philips Italy; (ID = 107286) Radio 744; Philips Italy; (ID = 107287) Radio
Use red slider bar for more.

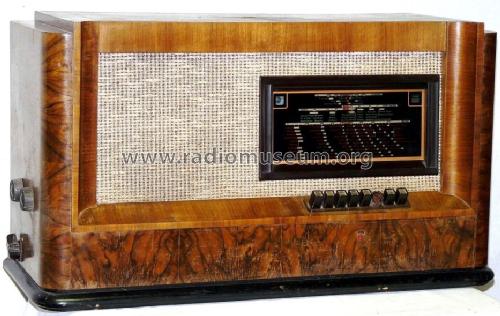

744; Philips Italy; (ID = 879975) Radio
Philips Italy;: 744 [Radio] ID = 879975 933x591
Select picture or schematic to display from thumbnails on the right and click for download.
For model 744, Philips Italy; Milano (MI):
Sammlung

Country:  Italy
Manufacturer / Brand:  Philips Italy; Milano (MI)
Year: 1939/1940 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF8 EK2 EF9 EBL1 EM1 EBL1 WE53
Main principle Superheterodyne (common); ZF/IF 468 kHz; 1 AF stage(s)
Tuned circuits 8 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110, 125, 140, 160, 160, 170, 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 25 cm = 9.8 inch
Power out 8 W (unknown quality)
from Radiomuseum.org Model: 744 - Philips Italy; Milano MI
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 740 x 410 x 230 mm / 29.1 x 16.1 x 9.1 inch
Notes Preselezione meccanica di otto frequenze mediante otto tasti posti sotto la scala parlante.
Net weight (2.2 lb = 1 kg) 22.9 kg / 50 lb 7 oz (50.441 lb)
Price in first year of sale 2'500.00 ITL
Source of data Guida Pratica Antique Radio III (2000)
Mentioned in -- Original prospect or advert

Model page created by Giovanni Ciotti. See "Data change" for further contributors.
