753A; Philips - Schweiz (ID = 747873) Radio

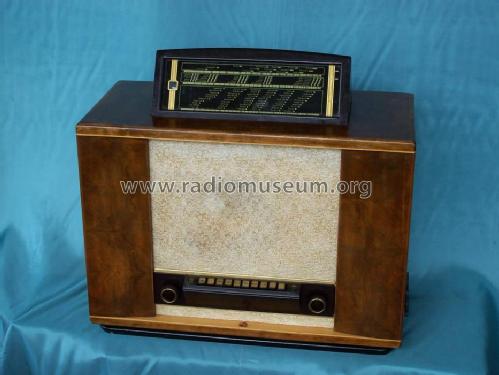

Philips - Schweiz: 753A [Radio] ID = 747873 933x701
Select picture or schematic to display from thumbnails on the right and click for download.
For model 753A, Philips - Schweiz

Country:  Switzerland
Manufacturer / Brand:  Philips - Schweiz
Year: 1938/1939 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 8: EF8 EK3 EF9 EAB1 EM1 EF6 EL3 AZ1
Main principle Superhet with RF-stage; ZF/IF 473 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
Power out 4.5 W (unknown quality)
from Radiomuseum.org Model: 753A - Philips - Schweiz
Material Wooden case
Shape Tablemodel with Push Buttons.
Dimensions (WHD) 620 x 430 x 290 mm / 24.4 x 16.9 x 11.4 inch
Notes

Motorabstimmung, 8 programmierbare Drucktasten.


Motortuning: 8 programmable push buttons, 2 buttons for up/down tuning.

Net weight (2.2 lb = 1 kg) 20.5 kg / 45 lb 2.5 oz (45.154 lb)
Price in first year of sale 550.00 SFr
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Thali-Schemasammlung und Tungsram-Röhrenbestückung.
Mentioned in Les Radio PHILIPS de collection
Literature/Schematics (3) Philips Folder for 1938/1939.
Picture reference Das Modell ist im «Radiokatalog» (Erb) abgebildet.
