795A

795A; Philips Electrical, (ID = 318990) Radio

795A; Philips Electrical, (ID = 318991) Radio
795A; Philips Electrical, (ID = 436182) Radio 795A; Philips Electrical, (ID = 436181) Radio
795A; Philips Electrical, (ID = 436185) Radio 795A; Philips Electrical, (ID = 2511573) Radio
795A; Philips Electrical, (ID = 2511574) Radio 795A; Philips Electrical, (ID = 2511575) Radio
795A; Philips Electrical, (ID = 2511576) Radio 795A; Philips Electrical, (ID = 2511577) Radio
Use red slider bar for more.
795A; Philips Electrical, (ID = 436182) Radio
Philips Electrical,: 795A [Radio] ID = 436182 668x560
Select picture or schematic to display from thumbnails on the right and click for download.
For model 795A, Philips Electrical, Lamps, Industrial - Miniwatt; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Philips Electrical, Lamps, Industrial - Miniwatt; London
Year: 1936 Category: Broadcast Receiver - or past WW2 Tuner

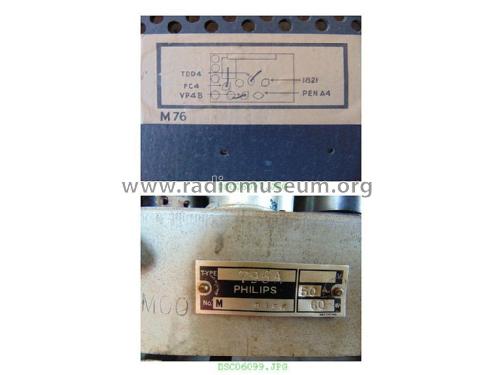

Valves / Tubes 6: FC4 VP4B TDD4 PenA4 TV4 1821
Main principle Superheterodyne (common); ZF/IF 128 kHz
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 100, 125, 145, 200, 220, 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 26 cm = 10.2 inch
Power out
from Radiomuseum.org Model: 795A - Philips Electrical, Lamps,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 22 x 17.5 x 11 inch / 559 x 445 x 279 mm
Notes Mono knob tuning; Magic eye tuning indicator; hinged tuning scale; same chassis in Mullard models MAS5 and MUS5. variable band width in monoknob control, rear switch for internal speaker, fast and slow tuning sped. Bands: 16.5-51 mt, 198-585 mt, 725-2000 mt.
Net weight (2.2 lb = 1 kg) 17.5 kg / 38 lb 8.7 oz (38.546 lb)
Price in first year of sale 18.00 GBP
Source of data Radio! Radio!
Literature/Schematics (1) -- Original-techn. papers.

Model page created by Konrad Birkner † 12.08.2014. See "Data change" for further contributors.



All listed radios etc. from Philips Electrical, Lamps, Industrial - Miniwatt; London
Here you find 413 models, 278 with images and 279 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips Electrical,: 795A
Threads: 2 | Posts: 4
Hits: 1672     Replies: 0
philips: 795A;
James Pezzack
14.Mar.13
  1

 Hi to every one , just joined, looking for help with a philips 795A dial , I need an image of the dial as the one I have is smashed and I need to make a new one. any help with this matter would be greatly appreciated. thanks Jimi


Hits: 1863     Replies: 2
philips: 795A (795 A); - Mains AC -Waveband Selector ring
Robert Sarbell
02.Apr.08
  1 Dear colleagues,

I have reviewed all of the front views of the 795A and 796A models which were submitted by Mr Erb (from manufacturers original sources) and all other members - even from the different countries of production.

My question relates to the actual position of the outer ring when the radio is in the "Off" position as shown by the indicator.

There seems to be 2 possible positions - unless some of the photos were taken when the waveband selector was actually in a position other than "Off".

It appears as though the alignment will be at the 7:30 - 1:30 clock position OR at the 9:00 - 3:00 oclock position.

The reason I ask. . . . If the radio had been "serviced" some many years ago, could the ring have been misaligned in such a manner as to avoid re-connecting to the power switch linkage??

Respectfully,
Robert
Note:  I have not fully removed the chassis from the cabinet because there is some binding in the lower left portion of the knob assembly - however, the selector moves freely through all of the selections, but the AC off-on function does not occur!!
Torbjörn Forsman
12.Aug.09
  2

I have checked the position of the selector ring on my 796A (made in Holland), it is at the 7:30 - 1:30 position at power OFF, so one can say that the five positions are located symmetrically around 9:00 - 3:00 which means medium wave. Although that radio seems to have been serviced some time in the past, i think the chassis has never been removed from the casing.

I observed that now, after the radio has been standing unused for 15-20 years, the mains switch is unreliable, it does not always switch off.

Robert Sarbell
14.Aug.09
  3

Hello Torbjorn,

I agree with your observation fully. . .the positions of my selector ring are as follows-in the clockwise rotation from the Off mode:

KW, then MW, then LW, and finally the Grammophone mode. The off-on switch has become freed from the "frozen" position after the lubricant had congealed from un-use. The mode indicator properly displays the mode in the small window - white OFF, Green KW*, White MW*, Red LW*, and the Grammo mode

I am very pleased with the results, except the volume level does not increase as much as I expected - that also may be attributed to an oxidation film on the control.

I was very fortunate to find a NOS Mazda ME41 tube for the original TV4 magic eye

NOTE: * The actual display shows the band in "meters" as shown on the dial glass

Respectfully,

Robert


Philips Electrical,: 795A
End of forum contributions about this model
