820
Philips Canada
- Country
- Canada
- Manufacturer / Brand
- Philips Canada
- Year
- 1950/1951
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 147780
Simpson's Spring and Summer 1952 catalog.

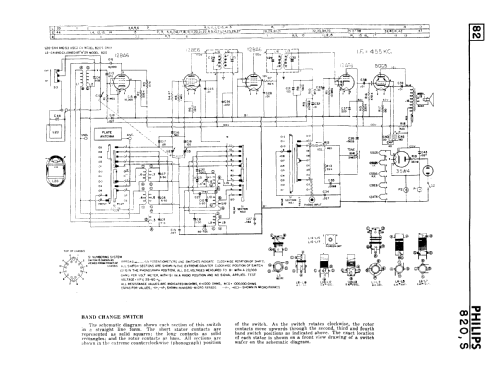

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 6
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast plus 2 Short Wave bands.
- Power type and voltage
- AC/DC-set / 113 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: 820 - Philips Canada
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 18 x 12 x 8 inch / 457 x 305 x 203 mm
- Notes
- Model 820 and 820S have same schematics.
- Net weight (2.2 lb = 1 kg)
- 6.6 kg / 14 lb 8.6 oz (14.537 lb)
- Price in first year of sale
- 79.95 $
- Source of data
- - - Data from my own collection
- Circuit diagram reference
- Radio College of Canada
- Mentioned in
- RCC Supp. 24 page 82
- Author
- Model page created by Ashis Mukerjea. See "Data change" for further contributors.
