• Year
  • 1940
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 97896

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superhet with RF-stage; ZF/IF 473 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Details
  • Record Player (perh.Changer)
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent or electro-dynamic (moving coil), system not known yet.
  • Material
  • Wooden case
  • from Radiomuseum.org

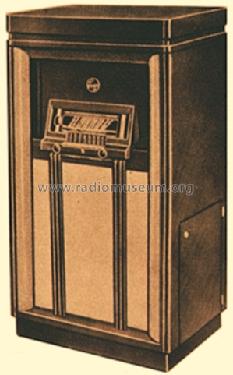

  • Model: Konczertszekrény 82K - Philips Hungary, Rádió és
  • Shape
  • Console with Push Buttons.
  • Notes
  • Besondere Gegenkopplung der NF-Stufe.
  • Price in first year of sale
  • 988.00 pengö
  • Literature/Schematics (1)

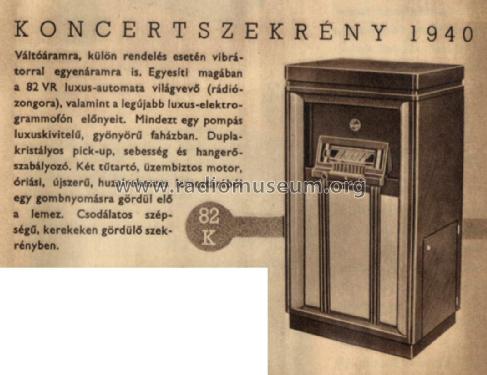

  • -- Original prospect or advert (Philips Rádiók 1940.)
  • Author
  • Model page created by Folkert Rothe. See "Data change" for further contributors.
