830A

830A; Philips - Schweiz (ID = 19303) Radio

830A; Philips - Schweiz (ID = 19304) Radio

830A; Philips - Schweiz (ID = 8063) Radio

830A; Philips - Schweiz (ID = 8064) Radio

830A; Philips - Schweiz (ID = 8065) Radio

830A; Philips - Schweiz (ID = 8066) Radio
830A; Philips - Schweiz (ID = 2171292) Radio 830A; Philips - Schweiz (ID = 66938) Radio
830A; Philips - Schweiz (ID = 115097) Radio 830A; Philips - Schweiz (ID = 357219) Radio
830A; Philips - Schweiz (ID = 547310) Radio 830A; Philips - Schweiz (ID = 547311) Radio
830A; Philips - Schweiz (ID = 547312) Radio 830A; Philips - Schweiz (ID = 547313) Radio
830A; Philips - Schweiz (ID = 1404137) Radio 830A; Philips - Schweiz (ID = 1404139) Radio
Use red slider bar for more.

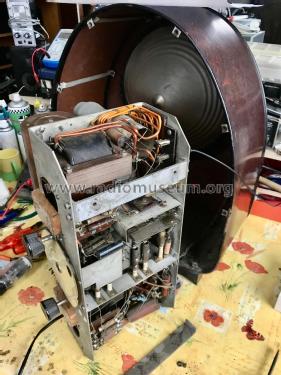

830A; Philips - Schweiz (ID = 2171292) Radio

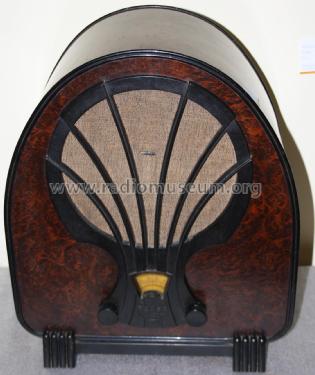

Philips - Schweiz: 830A [Radio] ID = 2171292 1400x1666
Select picture or schematic to display from thumbnails on the right and click for download.
For model 830A, Philips - Schweiz:
Gerät steht im Museo della Radio e della Fotografia

Country:  Switzerland
Manufacturer / Brand:  Philips - Schweiz
Year: 1931–1933 Category: Broadcast Receiver - or past WW2 Tuner

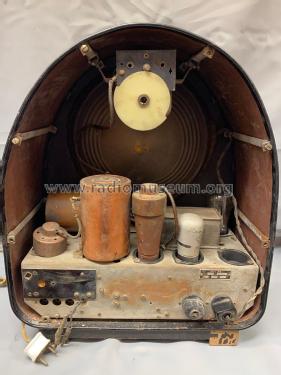

Valves / Tubes 5: E452T E452T E424N C443 506
Main principle TRF without regeneration
Tuned circuits 2 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details

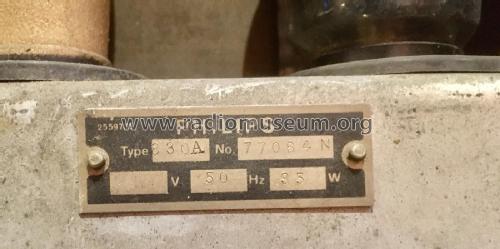

Power type and voltage Alternating Current supply (AC) / 110-240 Volt

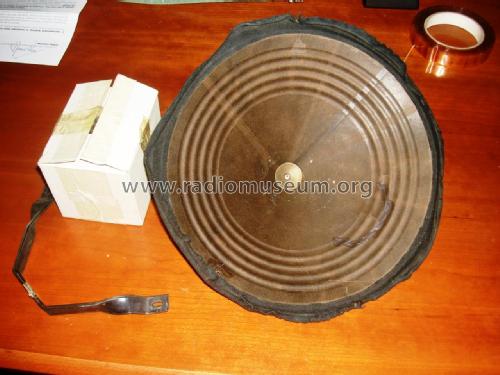

Loudspeaker Magnetic loudspeaker (reed) of high quality (4 magnet poles). / Ø 28 inch = 71.1 cm
Power out
from Radiomuseum.org Model: 830A - Philips - Schweiz
Material Bakelite case

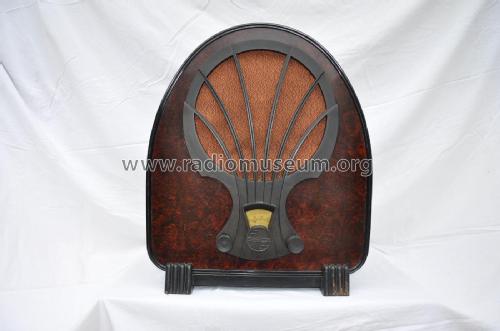

Shape Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).
Dimensions (WHD) 410 x 490 x 220 mm / 16.1 x 19.3 x 8.7 inch
Notes

Ch=820A

Grid detection on E424N.



Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)
Price in first year of sale 365.00 SFr.
External source of data E. Erb 3-907007-36-0
Source of data Radiokatalog Band 2, Ernst Erb
Circuit diagram reference Die «Thali Schemasammlung» führt das Modell.
Mentioned in Les Radio PHILIPS de collection

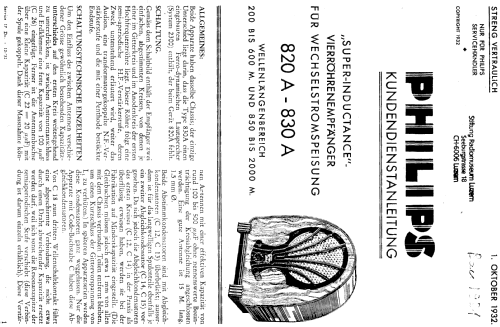

Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from Philips - Schweiz
Here you find 287 models, 210 with images and 213 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.







Forum contributions about this model
Philips - Schweiz: 830A
Threads: 1 | Posts: 1
Hits: 2021     Replies: 0
philips-ch: Technische Beschreibung
Ernst Erb
31.Dec.02
  1 13 Blätter unter Modell 820A hochgeladen, da Chassis gleich.
