890A

• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 7318

• • Brand: Deutsche Philips-Ges.

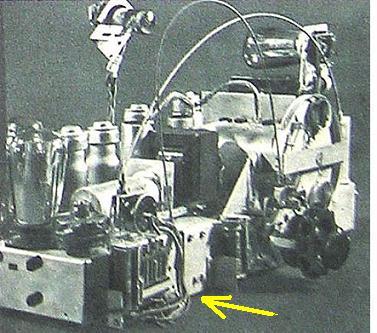

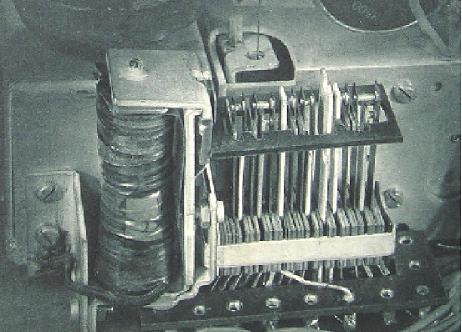

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• EK2 EF5 EBC3 EBC3 EM1 EL3 EL3 AZ1 1561

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz

• Tuned circuits
• 8 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 26 cm = 10.2 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: 890A - Philips Radios - Deutschland

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 610 x 400 x 290 mm / 24 x 15.7 x 11.4 inch

• Notes

• Mit Monoknopf-Abstimmung und Klapp-Skala.

• Net weight (2.2 lb = 1 kg)
• 21.5 kg / 47 lb 5.7 oz (47.357 lb)

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + FS-Bestückungstabellen

• Literature/Schematics (1)
• -- Original-techn. papers.

• Other Models

• Here you find 2540 models, 2252 with images and 1555 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips Radios - Deutschland
