• Country
• Germany

• Manufacturer / Brand
• Philips Radios - Deutschland

• Year
• 1939/1940

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 81687

• • Brand: Deutsche Philips-Ges.

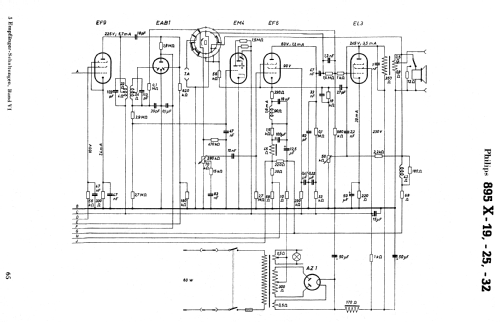

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EF8 ECH3 EF9 EAB1 EM4 EF6 EL3 AZ1

• Main principle
• Superhet with RF-stage; ZF/IF 452 kHz

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• from Radiomuseum.org
• Model: 895X-32 - Philips Radios - Deutschland

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Lange + FS-Bestückungstabellen

• Author
• Model page created by Bernd P. Kieck. See "Data change" for further contributors.
