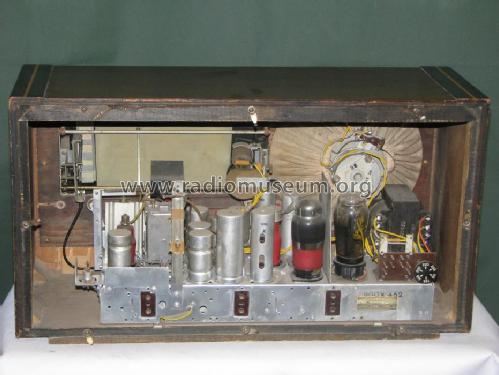

900X; Philips Radios - (ID = 1354509) Radio 900X; Philips Radios - (ID = 1354510) Radio
Use red slider bar for more.
900X; Philips Radios - (ID = 44567) Radio
Philips Radios -: 900X [Radio] ID = 44567 933x566
Select picture or schematic to display from thumbnails on the right and click for download.
For model 900X, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: EF8 ECH3 EBF2 EF9 EM4 EL3 AZ1
Main principle Superhet with RF-stage; ZF/IF 452 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 4.5 W (unknown quality)
from Radiomuseum.org Model: 900X - Philips Radios - Deutschland
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 580 x 330 x 250 mm / 22.8 x 13 x 9.8 inch
Notes

The technical papers mention a ECH3B tube instead of ECH3, which is functionally the same but with an octal base. Up to now, no radio has been found with an ECH3B tube.

Net weight (2.2 lb = 1 kg) 12.1 kg / 26 lb 10.4 oz (26.652 lb)
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung


All listed radios etc. from Philips Radios - Deutschland
Here you find 2506 models, 2225 with images and 1516 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Philips Radios -: 900X
Threads: 1 | Posts: 1
Hits: 1946     Replies: 0
philips: Philips 900X; Falscher Schaltplan
Michael Mehnert
15.Jan.12
  1

Hallo Schaltplanadmins,

bei dem deutschen Modell des 900X ist ein falscher Schaltplan anhängig.

Der Schaltplan mit der ID 389902 gehört zum Valgifson 521-AT Radio Watt.

Gruß

Michael Mehnert
