Electronic Clock Radio 390 90-AS-390/00

Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona

Data

Forum

Pictures

Collections

Country
Spain

Manufacturer / Brand
Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona

Year
1980

Category
Broadcast Receiver - or past WW2 Tuner

Radiomuseum.org ID
170392

Schematics

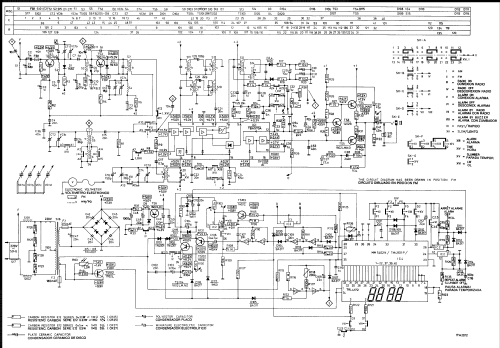

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 735977) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (3)

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 735978) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (3)

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 735979) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (3)

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 735980) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (3)

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 735981) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (3)

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 735982) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (3)

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 735983) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (3)

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 735984) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (3)

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 735986) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (3)

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 735987) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (3)

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 735989) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (3)

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 1045441) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (2)

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 1045442) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (2)

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 1045440) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (2)

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 735974) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (2)
Sacada del manual

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 1836977) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (1)

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 1836978) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (1)

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 1836979) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (1)

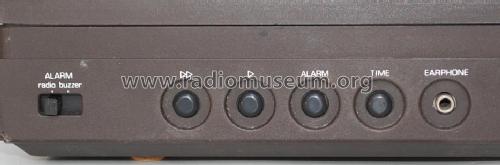

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 1836980) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (1)

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 1836982) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (1)

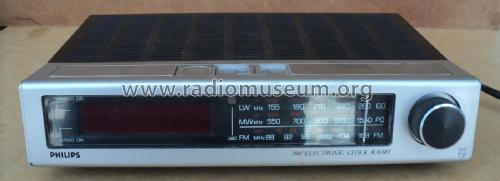

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 2313568) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (1)

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 2313570) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (1)

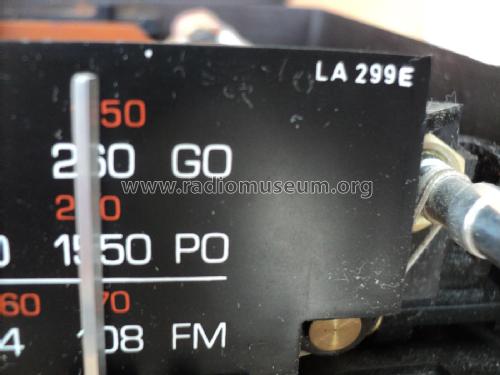

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 2313571) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (1)

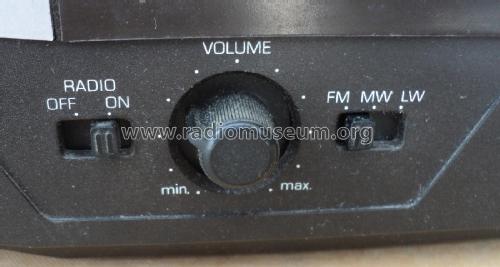

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 2313572) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (1)

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 2313573) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (1)

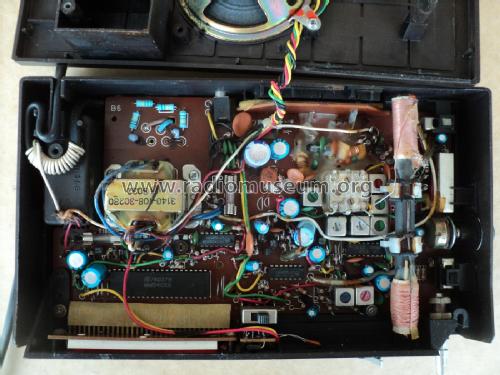

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 2313574) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (1)

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 2754718) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (1)

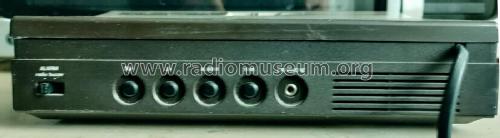

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 2754719) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (1)

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 2754721) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (1)

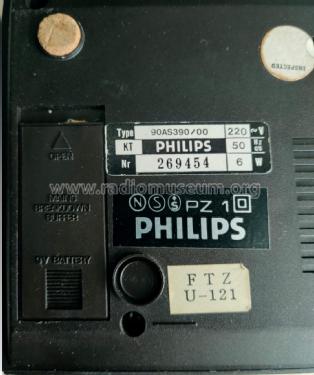

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 2754722) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (1)

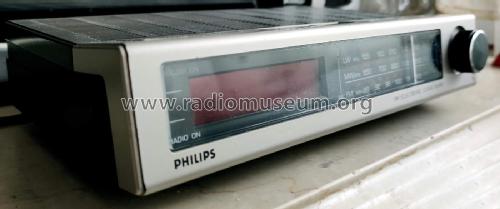

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 2754723) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (1)

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 2754724) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (1)

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 2754727) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (1)

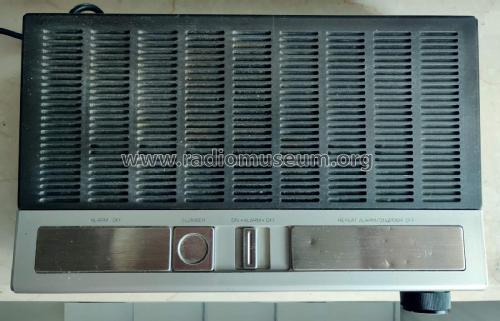

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 2754728) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (1)

Electronic Clock Radio 390 90-AS-390/00; Philips Ibérica, (ID = 2754729) Radio — Philips Ibérica, Electronic Clock Radio 390 90-AS-390/00 (1)

Click on the schematic thumbnail to request the schematic as a free document.

Technical Specifications

Number of Transistors
10

Semiconductors
ED1402 ED1502 ED1602 ED1702 ED1802 TBA570 CD4016 CD4069 MM5402 1N60 1N4001 BA317 BZX79

Main principle
Superheterodyne (common); ZF/IF 468/10700 kHz

Tuned circuits
6 AM circuit(s) 10 FM circuit(s)

Wave bands
Broadcast, Long Wave and FM or UHF.

Power type and voltage
Alternating Current supply (AC) / 110; 220 & for clock 9 Volt

Loudspeaker
Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

Power out
0.1 W (unknown quality)

Material
Plastics (no bakelite or catalin)

from Radiomuseum.org
Model: Electronic Clock Radio 390 90-AS-390/00 - Philips Ibérica, COPRESA,

Shape
Tablemodel with Clock ((Alarm-) Clock Radio).

Notes
Pila de 9 V. Para mantenimiento hora.
The clock needs a 9 Volt battery for backup. It has also an alarm. The model was perhaps made in the Netherlands for Spain - has normally only 220 V, not a choice for 110 V. We know that it was on market in June 1980 - but not when it started and when it ended. The manual reports the following about the FM aerial: "The appliance is provided with a built-in FM aerial around the mains lead. In some cases it may be necessary to reposition the mains lead in order to obtain optimum reception". The lettering on the speaker shows that it has an output of 100 mW.

Source of data
-- Original-techn. papers.

Author
Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.

Other Models
Here you find 593 models, 490 with images and 457 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Philips Ibérica, COPRESA, Compañía de Productos Electrónicos, Miniwatt tubes, SELEZ; Madrid, Barcelona

Collections | Museums | Literature

Collections

The model Electronic Clock Radio 390 is part of the collections of the following members.

Forum
