• Country
• Austria

• Manufacturer / Brand
• Philips - Österreich

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 82347

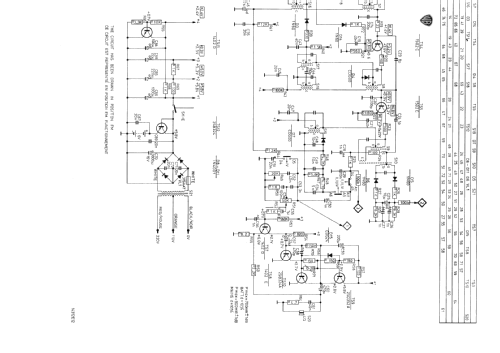

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 12

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz; 4 AF stage(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 110; 220 / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 0.9 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 90AL680 [/00 /01 /15 /40 /51] - Philips - Österreich

• Shape
• Portable set > 8 inch (also usable without mains)

• Notes
• 5 Ausführungen:
  /00 ZF = 468kHz
  /01 ZF = 455kHz
  /15 ZF = 468kHz
  /40 ZF = 468kHz
  /51 ZF = 468kHz.

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Bauer. See "Data change" for further contributors.

• Other Models

• Here you find 1069 models, 1004 with images and 851 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Philips - Österreich
