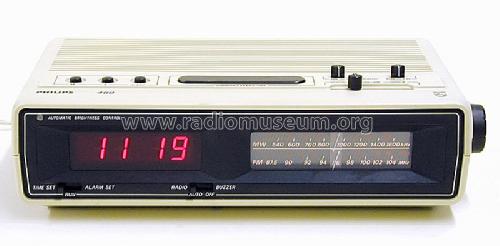

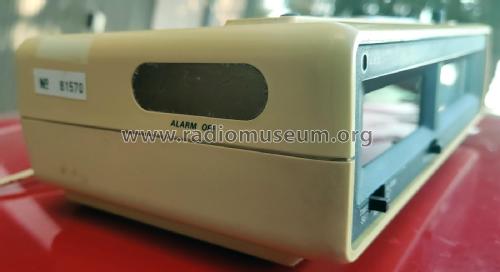

Musi Clock 460 90AS460/00

Philips - Österreich

  • Year
  • 1977
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 73278

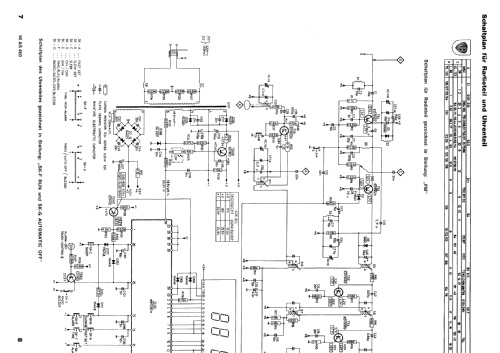

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 18
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 cm = 2.8 inch
  • Power out
  • 0.5 W (unknown quality)
  • Material
  • Plastics (no bakelite or catalin)
  • from Radiomuseum.org
  • Model: Musi Clock 460 90AS460/00 - Philips - Österreich
  • Shape
  • Tablemodel with Clock ((Alarm-) Clock Radio).
  • Dimensions (WHD)
  • 295 x 158 x 90 mm / 11.6 x 6.2 x 3.5 inch
  • Net weight (2.2 lb = 1 kg)
  • 1.3 kg / 2 lb 13.8 oz (2.863 lb)
  • Mentioned in
  • Trader Service Sheet 3292/ 1977
  • Literature/Schematics (1)
  • -- Original-techn. papers.
