• Year
  • 1947/1948
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 125794

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 7
  • Main principle
  • Superhet with RF-stage; ZF/IF 452 kHz
  • Tuned circuits
  • 7 AM circuit(s)
  • Wave bands
  • Broadcast plus 2 Short Wave bands.
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 125; 145; 200; 220; 240 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Material
  • Wooden case
  • from Radiomuseum.org

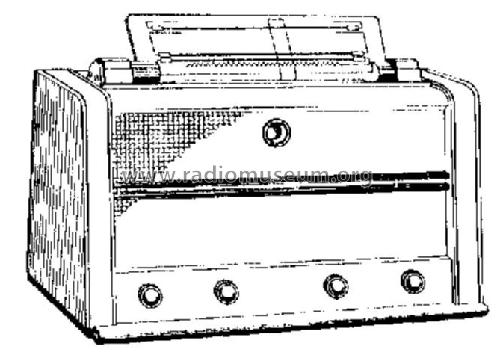

  • Model: 916X -08 -11 [MW, 2 × KW] - Philips; Eindhoven tubes
  • Shape
  • Tablemodel, low profile (big size).
  • Dimensions (WHD)
  • 610 x 480 x 255 mm / 24 x 18.9 x 10 inch
  • Notes
  • Es gibt sowohl eine Ausführung mit oben aufgesteckter Skala und Mag.-Auge mittig, als auch eine Ausführung 916X -10 mit Frontskala und Mag.-Auge rechts.

    Die Höhenangabe ist inkl. aufgesteckter Skala.

    Siehe auch Modell 916X -05 -50 mit LW, MW und 2 × KW.

  • Literature/Schematics (1)
  • -- Original-techn. papers.
