• Country
• Canada

• Manufacturer / Brand
• Philips Canada

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 181859

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AT6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5.25 inch = 13.3 cm

• Power out
• 0.9 W (unknown quality)

• Material
• Bakelite case

• from Radiomuseum.org

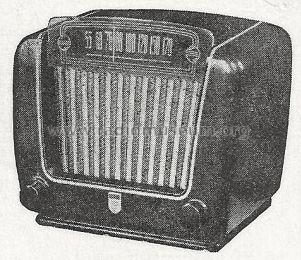

• Model: 920 - Philips Canada

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 10.25 x 8.25 x 7.25 inch / 260 x 210 x 184 mm

• Notes
• Canada Supplements. Built in loop antenna.

• Circuit diagram reference
• Radio College of Canada

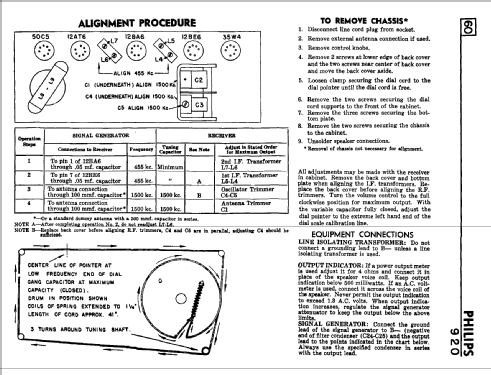

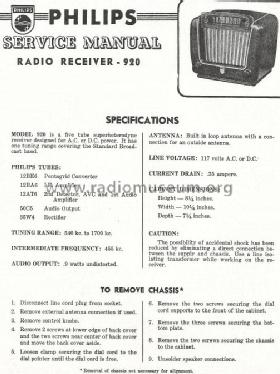

• Literature/Schematics (1)
• Canada Supplements philips page 59 to 60

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
