• Country
• Canada

• Manufacturer / Brand
• Philips Canada

• Year
• 1949 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 181875

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 6BE6 6BA6 6AT6 6AQ5 6X4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands

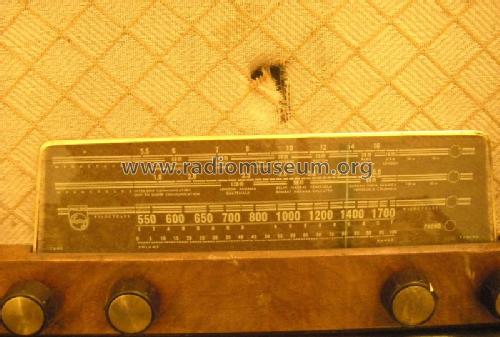

• Broadcast plus 2 Short Wave bands.

• Power type and voltage
• Alternating Current supply (AC) / 115 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Power out
• 2.5 W (5 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: 924 - Philips Canada

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 17.25 x 11.75 x 8 inch / 438 x 298 x 203 mm

• Notes

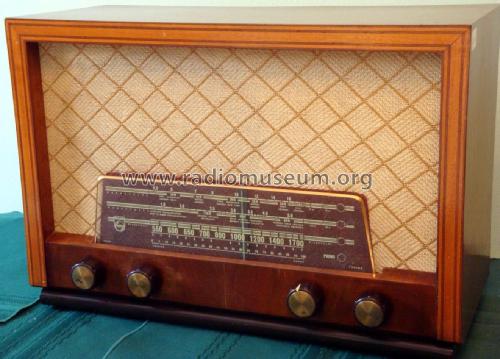

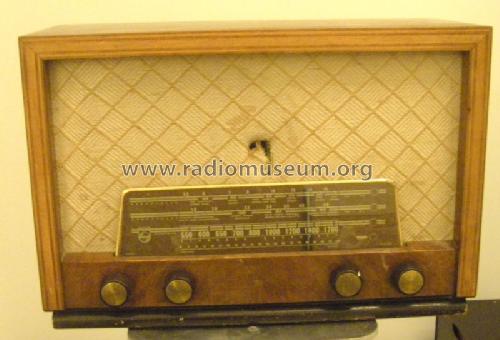

• The Philips model 924 is a 5-tube table radio. Covers standard broadcast, 1.7 to 5.5 MHz and 5.5 to 18.1 MHz shortwave. Same chassis as the Philips model 962.

  P.M.oval Speaker dimensions 9" by 5" (approx)

• Circuit diagram reference
• Radio College of Canada

• Literature/Schematics (1)
• Canada Supplements philips page 63 to 64

• Author
• Model page created by Dirk Taekels. See "Data change" for further contributors.
