930A

• Country
• Czechoslovakia

• Manufacturer / Brand
• Philips akc. spol., Praha-Hloubetin

• Year
• 1931/1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 77700

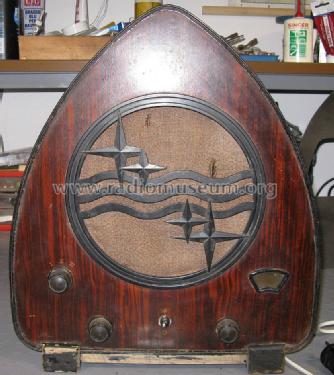

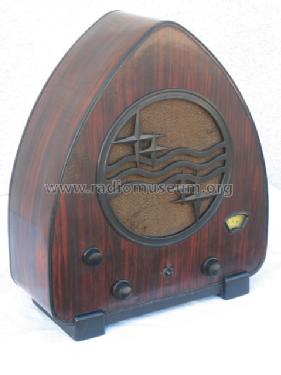

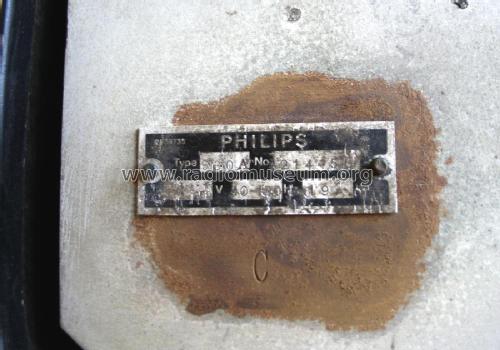

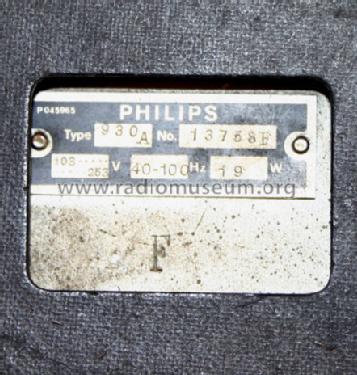

• Picture
• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

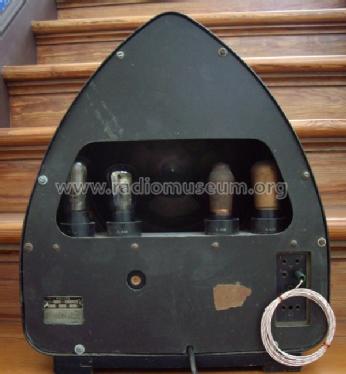

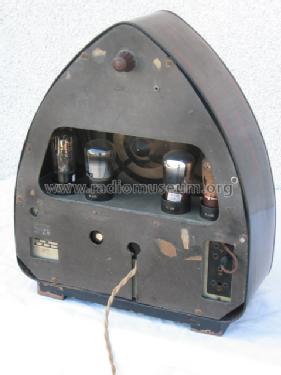

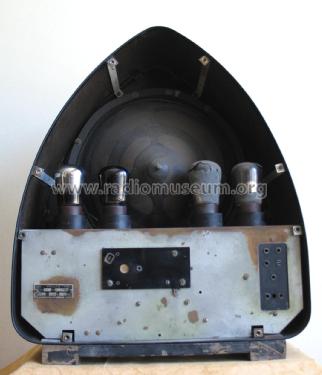

• Valves / Tubes
• E438 E438 B443 or C443 1801

• Main principle
• TRF with regeneration; 2 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

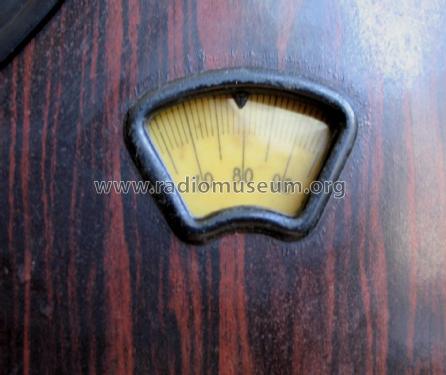

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 103-253 Volt

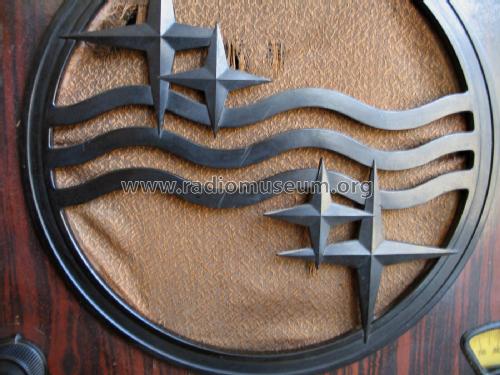

• Loudspeaker
• Magnetic loudspeaker (reed) of high quality (4 magnet poles).

• Material
• Various materials

• from Radiomuseum.org
• Model: 930A - Philips akc. spol., Praha-

• Shape
• Table-Cathedral-Type (upright, round top or gothic arch, not rounded edges only).

• Dimensions (WHD)
• 410 x 470 x 170 mm / 16.1 x 18.5 x 6.7 inch

• Notes
• The Philips model 930A is a regenerative TRF - which is not quite clearly shown on the schematic - see here in this article about it.

• Net weight (2.2 lb = 1 kg)
• 6.8 kg / 14 lb 15.6 oz (14.978 lb)

• Literature/Schematics (1)
• Beran: Historicke Radio I

• Author
• Model page created by Eduard Pavlik. See "Data change" for further contributors.
