• Year
  • 1940/1941
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 29589

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Tubes
  • 8
  • Main principle
  • Superhet with RF-stage; ZF/IF 452 kHz
  • Wave bands
  • Broadcast, Long Wave and 2 x Short Wave.
  • Power type and voltage
  • Alternating Current supply (AC) / 110-245 Volt
  • Loudspeaker
  • 2 Loudspeakers
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 990A - Philips; Eindhoven tubes
  • Shape
  • Tablemodel with Push Buttons.
  • Dimensions (WHD)
  • 645 x 490 x 315 mm / 25.4 x 19.3 x 12.4 inch
  • Notes

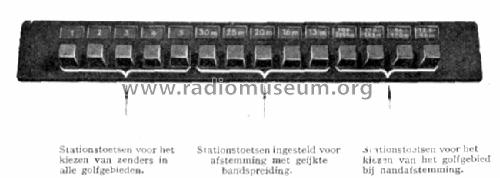

  • 5 preselection buttons for all ranges;5 other preselecton buttons for 30m, 25m, 20m, 16m and 13m band; 4 buttons for manual tuning selection in 4 bands. The ten left buttons control the tuning motor mechanism Type X can also be used on DC (110-245) with 7882C.
  • Net weight (2.2 lb = 1 kg)
  • 30 kg / 66 lb 1.3 oz (66.079 lb)
  • Price in first year of sale
  • 385.00 Hfl
  • Author
  • Model page created by Iven Müller. See "Data change" for further contributors.

 Collections | Museums | Literature

Collections

The model is part of the collections of the following members.

Museums

The model can be seen in the following museums.

 Forum

Forum contributions about this model: Philips; Eindhoven: 990A

Threads: 1 | Posts: 8

Ich habe einen Philips 990x aus Holland erstanden. Abweichend von den Angaben im RM ist er mit einer CL4 bestückt. Der Rest der Röhren sind die "rote Serie". Die Gleichrichterröhre fehlt vermutlich, die Schaltung wurde hier modifiziert. Kennt jemand dieses Modell mit der CL4? Bei Röhren bin ich etwas unbedarft. Sollte ich es als Änderungsvorschlag / Variante anbringen?

Viele Grüße, B. Grenz

Berthold Grenz, 23.Oct.09
