A52A FP

A52A FP; Philips France; (ID = 2398198) Radio A52A FP; Philips France; (ID = 2399974) Radio
A52A FP; Philips France; (ID = 2399971) Radio A52A FP; Philips France; (ID = 2398197) Radio
A52A FP; Philips France; (ID = 2399972) Radio A52A FP; Philips France; (ID = 2399968) Radio
A52A FP; Philips France; (ID = 2399970) Radio
Use red slider bar for more.

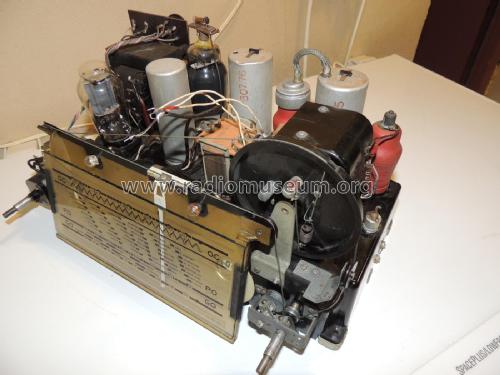

A52A FP; Philips France; (ID = 2398198) Radio
Philips France;: A52A FP [Radio] ID = 2398198 1400x1050
Select picture or schematic to display from thumbnails on the right and click for download.
For model A52A FP, Philips France; Paris

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1944 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH3 ECF1 EBL1 AZ1
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-245 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 18 cm = 7.1 inch
Power out
from Radiomuseum.org Model: A52A FP - Philips France; Paris
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 510 x 390 x 230 mm / 20.1 x 15.4 x 9.1 inch
Notes




Model page created by Eddy Rischmann. See "Data change" for further contributors.



All listed radios etc. from Philips France; Paris
Here you find 544 models, 482 with images and 297 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
