A52U

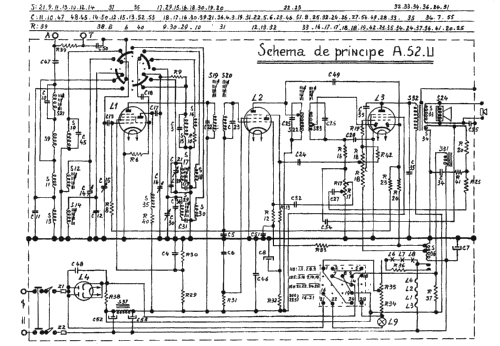

A52U; Philips France; (ID = 2288630) Radio
A52U; Philips France; (ID = 2288629) Radio
Use red slider bar for more.
A52U; Philips France; (ID = 2288629) Radio
Philips France;: A52U [Radio] ID = 2288629 726x432
Select picture or schematic to display from thumbnails on the right and click for download.
For model A52U, Philips France; Paris:
Bild aus Serviceanleitung.

Country:  France
Manufacturer / Brand:  Philips France; Paris
Year: 1943/1944 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: ECH3 ECF1 CBL1 CY2 C10
Main principle Super-Heterodyne (Super in general); ZF/IF 472 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage AC/DC-set / 110; 125; 150; 220 Volt
Loudspeaker Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 16 cm = 6.3 inch
Power out
from Radiomuseum.org Model: A52U - Philips France; Paris
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 510 x 390 x 230 mm / 20.1 x 15.4 x 9.1 inch
Net weight (2.2 lb = 1 kg) 9 kg / 19 lb 13.2 oz (19.824 lb)
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) - - Manufacturers Literature (Philips Apparatentypenliste (1955))

Model page created by Gidi Verheijen. See "Data change" for further contributors.
