Aachen Luxus D24T212 D 24 T 212 Ch=D6N

Aachen Luxus D24T212 D 24 T 212 Ch=D6N; Philips Radios - (ID = 243057) Television

Aachen Luxus D24T212 D 24 T 212 Ch=D6N; Philips Radios - (ID = 243058) Television

Aachen Luxus D24T212 D 24 T 212 Ch=D6N; Philips Radios - (ID = 243059) Television

Aachen Luxus D24T212 D 24 T 212 Ch=D6N; Philips Radios - (ID = 243056) Television

Aachen Luxus D24T212 D 24 T 212 Ch=D6N; Philips Radios - (ID = 243060) Television

Aachen Luxus D24T212 D 24 T 212 Ch=D6N; Philips Radios - (ID = 243061) Television

Aachen Luxus D24T212 D 24 T 212 Ch=D6N; Philips Radios - (ID = 243062) Television
Aachen Luxus D24T212 D 24 T 212 Ch=D6N; Philips Radios - (ID = 243100) Television
Use red slider bar for more.
Aachen Luxus D24T212 D 24 T 212 Ch=D6N; Philips Radios - (ID = 243100) Television
Philips Radios -: Aachen Luxus D24T212 D 24 T 212 Ch=D6N [Television] ID = 243100 761x646

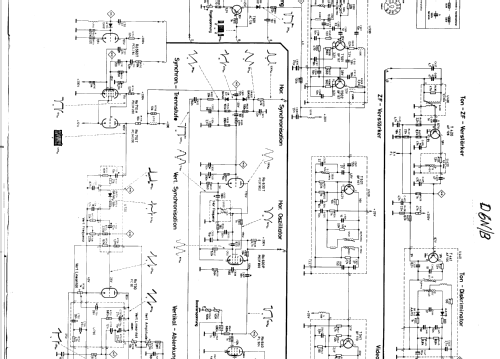

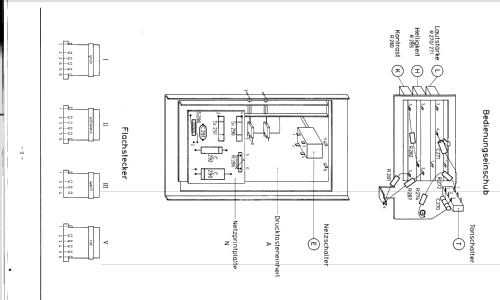

Select picture or schematic to display from thumbnails on the right and click for download.
For model Aachen Luxus D24T212 D 24 T 212 Ch=D6N, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1972 Category: Television Receiver (TV) or Monitor
Valves / Tubes 10: PL504 PY88 PCL84 PCL86 PCH200 PC92 PL805 PCF802 DY86 A61-120W
Semiconductors (the count is only for transistors) 13:
Main principle Superheterodyne (common)
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Aachen Luxus D24T212 D 24 T 212 Ch=D6N - Philips Radios - Deutschland
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 680 x 490 x 390 mm / 26.8 x 19.3 x 15.4 inch
Notes 28 Dioden, 1 IC. Bereiche VHF und UHF (Kanäle 2 bis 69). 24 Zoll SW-Gerät.
External source of data Orginal Philips Doku

Model page created by Franz Born †. See "Data change" for further contributors.
