Aachen Super 204U

Aachen Super 204U; Philips Radios - (ID = 118455) Radio

Aachen Super 204U; Philips Radios - (ID = 118456) Radio

Aachen Super 204U; Philips Radios - (ID = 118457) Radio

Aachen Super 204U; Philips Radios - (ID = 5063) Radio
Aachen Super 204U; Philips Radios - (ID = 279708) Radio Aachen Super 204U; Philips Radios - (ID = 279710) Radio
Aachen Super 204U; Philips Radios - (ID = 279712) Radio Aachen Super 204U; Philips Radios - (ID = 279709) Radio
Aachen Super 204U; Philips Radios - (ID = 279711) Radio Aachen Super 204U; Philips Radios - (ID = 477812) Radio
Aachen Super 204U; Philips Radios - (ID = 2008167) Radio Aachen Super 204U; Philips Radios - (ID = 2008168) Radio
Aachen Super 204U; Philips Radios - (ID = 2008169) Radio
Use red slider bar for more.

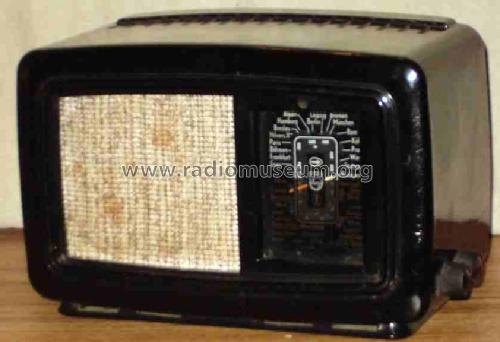

Aachen Super 204U; Philips Radios - (ID = 279708) Radio
Philips Radios -: Aachen Super 204U [Radio] ID = 279708 842x576
Select picture or schematic to display from thumbnails on the right and click for download.
For model Aachen Super 204U, Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH21 UCH21 UBL21 UY21
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 110/220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Aachen Super 204U - Philips Radios - Deutschland
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 270 x 165 x 130 mm / 10.6 x 6.5 x 5.1 inch
Notes

«Komissbrot» für KW sonst wie 203U

Collectors' prices
Source of data Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
