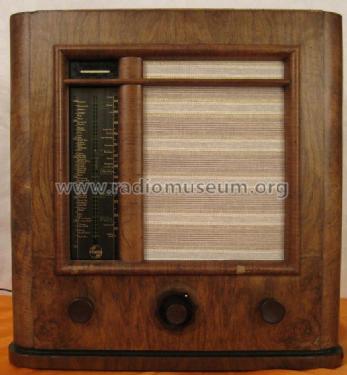

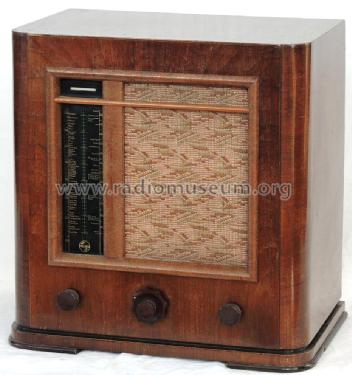

Aachen-Super D45 - D45A

Philips Radios - Deutschland

  • Year
  • 1935/1936
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 7386
    • Brand: Deutsche Philips-Ges.

Click on the schematic thumbnail to request the schematic as a free document.

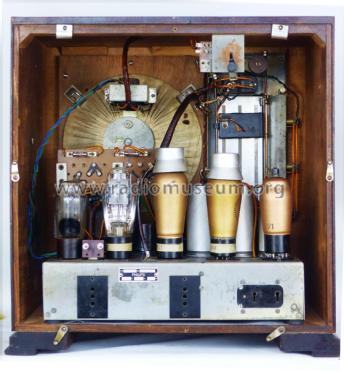

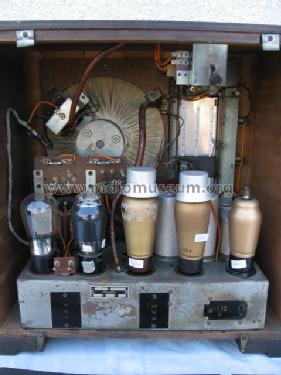

 Technical Specifications

  • Number of Tubes
  • 6
  • Main principle
  • Superheterodyne (common); ZF/IF 475 kHz
  • Tuned circuits
  • 6 AM circuit(s)

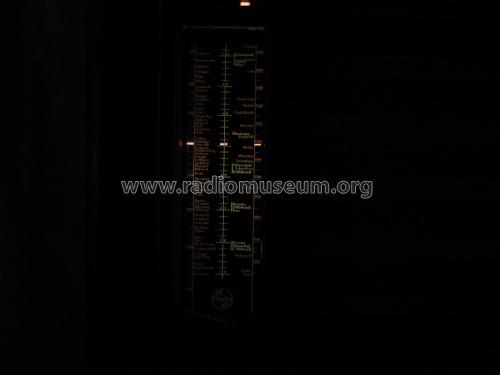

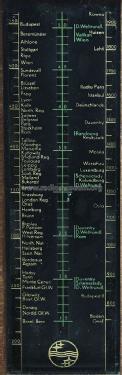

  • Wave bands
  • Broadcast, Long Wave and Short Wave.
  • Details
  • Visual Tuning Indicator pre Eye
  • Power type and voltage
  • Alternating Current supply (AC) / 12 taps: 103-253 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 21 cm = 8.3 inch
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: Aachen-Super D45 - D45A - Philips Radios - Deutschland
  • Shape
  • Tablemodel, high profile (upright - NOT Cathedral nor decorative).
  • Dimensions (WHD)
  • 420 x 445 x 270 mm / 16.5 x 17.5 x 10.6 inch
  • Notes
  • Feldstärke-Anzeige.
  • Net weight (2.2 lb = 1 kg)
  • 14.9 kg / 32 lb 13.1 oz (32.819 lb)
  • Price in first year of sale
  • 318.00 RM
  • Circuit diagram reference
  • Lange+Schenk+FS-Röhrenbestückung
