Aachen-Super (Philetta) 203U Lüftungslöcher
Philips Radios - Deutschland
- Country
- Germany
- Manufacturer / Brand
- Philips Radios - Deutschland
- Year
- 1941/1942
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 71749
-
- Brand: Deutsche Philips-Ges.

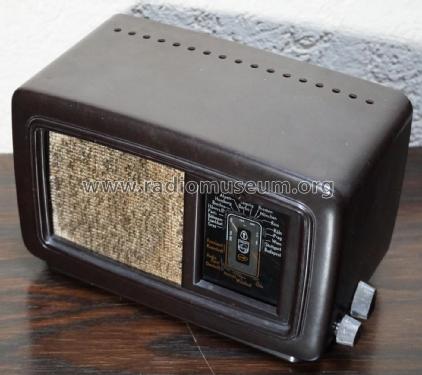

203U_Lüftungslöcher

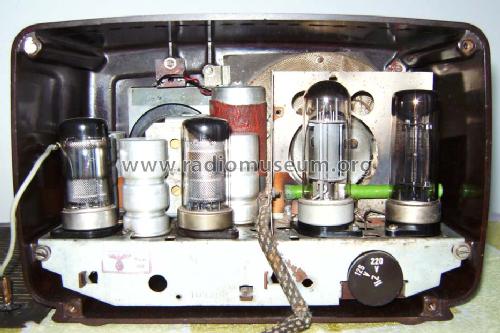

203U_innen
203U_RW
Glimmer, 1 Reihe Löcher
203U
Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 4
- Main principle
- Superheterodyne (common); ZF/IF 452 kHz
- Tuned circuits
- 6 AM circuit(s)
- Wave bands
- Broadcast (MW) and Long Wave.
- Power type and voltage
- AC/DC-set / 125-220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Bakelite case
- from Radiomuseum.org
- Model: Aachen-Super 203U [Lüftungslöcher] - Philips Radios - Deutschland
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 270 x 165 x 130 mm / 10.6 x 6.5 x 5.1 inch
- Notes
-
Es gibt mindestens drei Varianten: mit und ohne Löcher, Löcher mit Verstärkung durch eine Art Leiste. Ohne Löcher ist aus 1941 stammend.
- Net weight (2.2 lb = 1 kg)
- 2.7 kg / 5 lb 15.2 oz (5.947 lb)
- Author
- Model page created by Ernst Erb. See "Data change" for further contributors.
