Aachen-Super (Philetta) 203U Lüftungsschlitze

Aachen-Super 203U; Philips Radios - (ID = 2018108) Radio Aachen-Super 203U; Philips Radios - (ID = 2018109) Radio

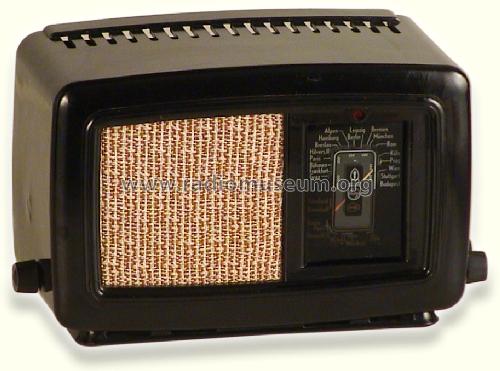

Aachen-Super 203U; Philips Radios - (ID = 2018110) Radio Aachen-Super 203U; Philips Radios - (ID = 57424) Radio
Aachen-Super 203U; Philips Radios - (ID = 2017857) Radio Aachen-Super 203U; Philips Radios - (ID = 2017858) Radio
Aachen-Super 203U; Philips Radios - (ID = 2017860) Radio Aachen-Super 203U; Philips Radios - (ID = 2017861) Radio
Aachen-Super 203U; Philips Radios - (ID = 2017863) Radio Aachen-Super 203U; Philips Radios - (ID = 2017864) Radio
Use red slider bar for more.
Aachen-Super 203U; Philips Radios - (ID = 2018108) Radio
Philips Radios -: Aachen-Super 203U [Radio] ID = 2018108 1400x926
Select picture or schematic to display from thumbnails on the right and click for download.
For model Aachen-Super (Philetta) 203U Lüftungsschlitze, Philips Radios - Deutschland:
Gerät aus Sammlung Gerbig.

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1941/1942 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: UCH21 UCH21 UBL21 UY21
Main principle Superheterodyne (common); ZF/IF 452 kHz
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage AC/DC-set / 125; 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: Aachen-Super 203U [Lüftungsschlitze] - Philips Radios - Deutschland
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 270 x 165 x 130 mm / 10.6 x 6.5 x 5.1 inch
Notes

Siehe auch die Varianten Aachen-Super (Philetta) 203U Lüftungslöcher und 203U keine Lüftungsöffnungen.

Net weight (2.2 lb = 1 kg) 2.7 kg / 5 lb 15.2 oz (5.947 lb)

Model page created by Gidi Verheijen. See "Data change" for further contributors.
