AG8108

AG8108; Philips Electrical, (ID = 577258) R-Player

AG8108; Philips Electrical, (ID = 577259) R-Player

AG8108; Philips Electrical, (ID = 577260) R-Player

AG8108; Philips Electrical, (ID = 577261) R-Player
AG8108; Philips Electrical, (ID = 992847) R-Player
Use red slider bar for more.
AG8108; Philips Electrical, (ID = 992847) R-Player
Philips Electrical,: AG8108 [R-Player] ID = 992847 933x707
Select picture or schematic to display from thumbnails on the right and click for download.
For model AG8108, Philips Electrical, Lamps, Industrial - Miniwatt; London

Country:  Great Britain (UK)
Manufacturer / Brand:  Philips Electrical, Lamps, Industrial - Miniwatt; London
Year: 1958 ? Category: Sound/Video Recorder and/or Player
Valves / Tubes 5: EF86 ECC83 ECL82 EZ80 EM81
Main principle Audio-Amplification
Wave bands - without
Details Tape Recorder
Power type and voltage Alternating Current supply (AC) / 110-127; 220-245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: AG8108 - Philips Electrical, Lamps,
Shape Tablemodel, with any shape - general.
Notes Reel to reel tape recorder. 7 inches max. spool diameter. Three-speed, dual-track. This model was improved and became model 8108G.
Net weight (2.2 lb = 1 kg) 13.6 kg / 29 lb 15.3 oz (29.956 lb)

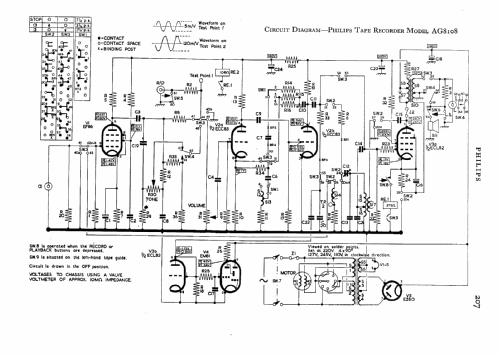

Source of data -- Schematic
Circuit diagram reference Radio and TV Servicing books (R&TVS) book

Model page created by Keith Staines. See "Data change" for further contributors.
