AG9123

AG9123; Philips Electrical, (ID = 577256) R-Player

AG9123; Philips Electrical, (ID = 577257) R-Player
Use red slider bar for more.
AG9123; Philips Electrical, (ID = 577256) R-Player
Select picture or schematic to display from thumbnails on the right and click for download.

Country:  Great Britain (UK)
Manufacturer / Brand:  Philips Electrical, Lamps, Industrial - Miniwatt; London
Year: 1958 ? Category: Sound/Video Recorder and/or Player
Semiconductors (the count is only for transistors) 4: OC71 OC71 OC72 OC72
Main principle Audio-Amplification
Wave bands - without
Details Rec.Player+Audio.Amp+LS
Power type and voltage Dry Batteries / 6 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.2 W (unknown quality)
from Radiomuseum.org Model: AG9123 - Philips Electrical, Lamps,
Material Leather / canvas / plastic - over other material
Shape Portable set > 8 inch (also usable without mains)

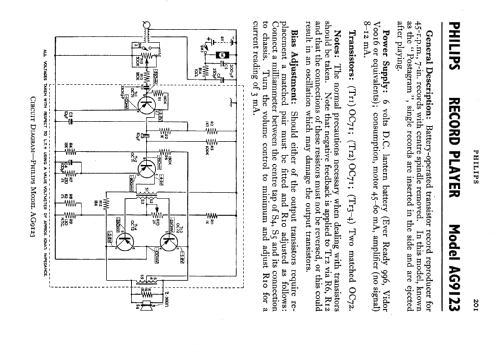

Notes Single speed (45rpm) record player with 3 stage transistor amplifier & speaker. Turntable is not visible, records are inserted into a slot.
Source of data -- Schematic
Circuit diagram reference Radio and TV Servicing books (R&TVS) book

Model page created by Keith Staines. See "Data change" for further contributors.
