Record Changer Chassis AG1016 /00G /01G /04G /22G /60G
Philips Belgium (Belgien)
- Country
- Belgium
- Manufacturer / Brand
- Philips Belgium (Belgien)
- Year
- 1963 ??
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 230547
- Wave bands
- - without
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 50 or 60 Hz: 110; 127; 220; 240 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Metal case
- from Radiomuseum.org

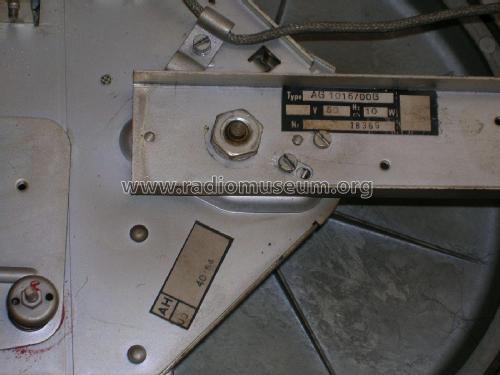

- Model: Record Changer Chassis AG1016 /00G /01G /04G /22G /60G - Philips Belgium Belgien
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 335 x 215 x 250 mm / 13.2 x 8.5 x 9.8 inch
- Notes
-
Record player chassis with 4 speeds: 16.6, 33.3 , 45, and 78 rpm. It works as a record changer for 45 rpm singles in conjunction with drop axis AE 154 52.
Pick-up elements: AG3202, AG3222, AG3302, AG3305, AG3402 or AG3403.
For servicing this version, see the model page for AG1016 /00 /01 /22.
AG1016 /00 has a few parts that differ from version AG1016 /00.
- Net weight (2.2 lb = 1 kg)
- 3.3 kg / 7 lb 4.3 oz (7.269 lb)
- Source of data
- -- Original-techn. papers.
- Author
- Model page created by Jörg Holtzapfel. See "Data change" for further contributors.
