AL4331-H; Philips Argentina, (ID = 2141677) Radio

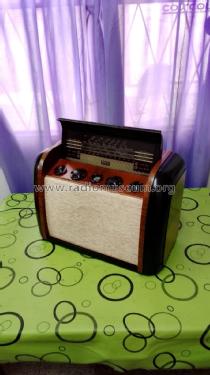

Philips Argentina,: AL4331-H [Radio] ID = 2141677 893x788
Select picture or schematic to display from thumbnails on the right and click for download.
For model AL4331-H, Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires

Country:  Argentina
Manufacturer / Brand:  Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires
Year: 1947 ?? Category: Broadcast Receiver - or past WW2 Tuner

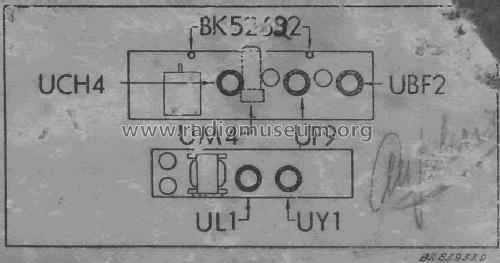

Valves / Tubes 6: UCH4 UF9 UBF2 UL1 UM4 UY1
Main principle Super-Heterodyne (Super in general)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast plus 2 Short Wave bands.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out 2 W (unknown quality)
from Radiomuseum.org Model: AL4331-H - Philips Argentina, FAPESA,
Material Wooden case
Shape Tablemodel, Box - most often with Lid (NOT slant panel).
Dimensions (WHD) 460 x 320 x 220 mm / 18.1 x 12.6 x 8.7 inch
Notes SW1 5.8 to 7.95 MHz.
SW2 9.2 to 12.5 MHz.
Dial lamp 19 volt 90 mA.
Audio stage with negative feedback.
Version -J is 220 volt AC only and uses a transformer to power filaments.
Versions H and T are for 220 Volt AC-DC, use several resistors and filaments connected in series.
Net weight (2.2 lb = 1 kg) 8 kg / 17 lb 9.9 oz (17.621 lb)

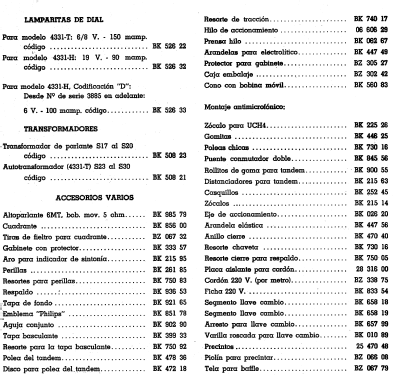

Literature/Schematics (1) - - Manufacturers Literature

Model page created by Jorge Mochkovsky. See "Data change" for further contributors.



All listed radios etc. from Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires
Here you find 199 models, 136 with images and 138 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
