AL4402-H

AL4402-H; Philips Argentina, (ID = 824228) Radio

AL4402-H; Philips Argentina, (ID = 824229) Radio

AL4402-H; Philips Argentina, (ID = 824230) Radio

AL4402-H; Philips Argentina, (ID = 824231) Radio
AL4402-H; Philips Argentina, (ID = 824890) Radio AL4402-H; Philips Argentina, (ID = 824889) Radio
AL4402-H; Philips Argentina, (ID = 824891) Radio AL4402-H; Philips Argentina, (ID = 824893) Radio
AL4402-H; Philips Argentina, (ID = 824894) Radio AL4402-H; Philips Argentina, (ID = 824911) Radio
Use red slider bar for more.
AL4402-H; Philips Argentina, (ID = 824890) Radio
Philips Argentina,: AL4402-H [Radio] ID = 824890 833x629
Select picture or schematic to display from thumbnails on the right and click for download.
For model AL4402-H, Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires:
my restored Philips AL4402-H

Country:  Argentina
Manufacturer / Brand:  Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires
Year: 1948 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: 12SA7GT 12SK7GT 12SQ7GT 50L6GT 35Z5GT
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out 2 W (unknown quality)
from Radiomuseum.org Model: AL4402-H - Philips Argentina, FAPESA,
Material Moulded (Bakelite or Plastics)
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 280 x 190 x 140 mm / 11 x 7.5 x 5.5 inch
Notes Dial lamp 6 Volt 50mA.
Audio stage with negative feedback.
SW: 5.5 to 12.5 MHz.
Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)

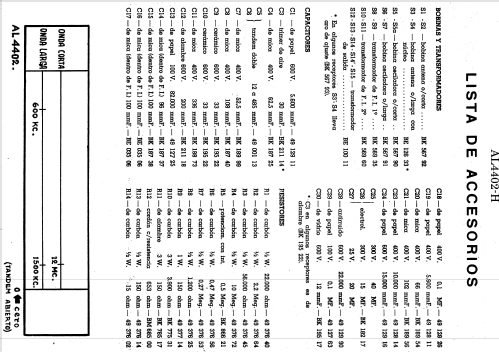

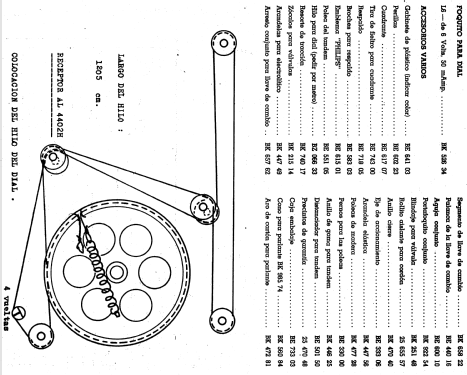

Literature/Schematics (1) - - Manufacturers Literature

Model page created by Jorge Mochkovsky. See "Data change" for further contributors.
