AL541H

AL541H; Philips Argentina, (ID = 2275495) Radio AL541H; Philips Argentina, (ID = 2275498) Radio
AL541H; Philips Argentina, (ID = 2275053) Radio AL541H; Philips Argentina, (ID = 2275500) Radio
Use red slider bar for more.
AL541H; Philips Argentina, (ID = 2275495) Radio
Philips Argentina,: AL541H [Radio] ID = 2275495 1280x720
Select picture or schematic to display from thumbnails on the right and click for download.
For model AL541H, Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires:
Modelo de propiedad del Ing. Domingo Riccillo, de don Torcuato, Argentina

Country:  Argentina
Manufacturer / Brand:  Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires
Year: 1942 Category: Broadcast Receiver - or past WW2 Tuner

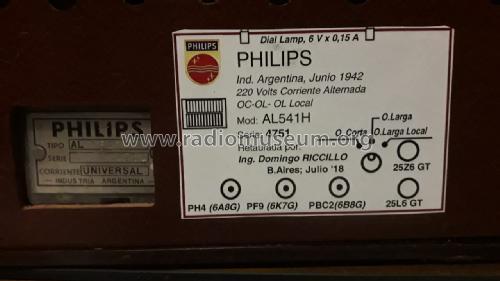

Valves / Tubes 5: PH4 PF9 PBF2 25L6 25Z6
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 inch = 15.2 cm
Power out 3 W (4 W max.)
from Radiomuseum.org Model: AL541H - Philips Argentina, FAPESA,
Material Bakelite case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 345 x 225 x 190 mm / 13.6 x 8.9 x 7.5 inch

Model page created by Heriberto Tavella. See "Data change" for further contributors.
