AL548H

AL548H; Philips Argentina, (ID = 2242774) Radio AL548H; Philips Argentina, (ID = 2242775) Radio

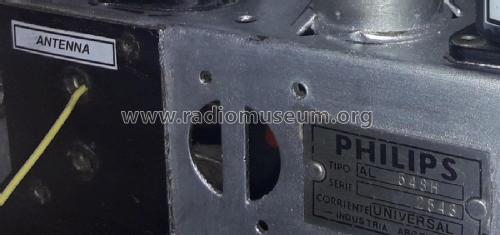

AL548H; Philips Argentina, (ID = 2243976) Radio AL548H; Philips Argentina, (ID = 2243977) Radio
AL548H; Philips Argentina, (ID = 2243978) Radio
Use red slider bar for more.

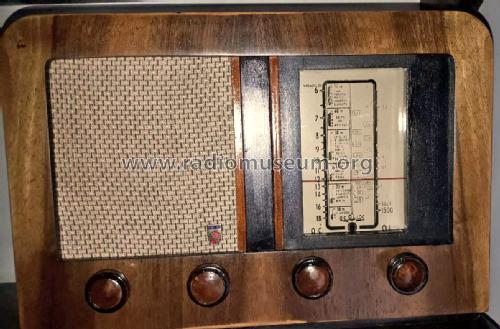

AL548H; Philips Argentina, (ID = 2242774) Radio
Philips Argentina,: AL548H [Radio] ID = 2242774 1196x787
Select picture or schematic to display from thumbnails on the right and click for download.
For model AL548H, Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires:
Modelo de propiedad del Ing. Domingo Riccillo, de Don Torcuato, provincia de Buenos Aires, Argentina.

Country:  Argentina
Manufacturer / Brand:  Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires
Year: 1938 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: PH4 PF9 PBF2 25L6GT 25Z6GT
Main principle Super-Heterodyne (Super in general); ZF/IF 455 kHz; 2 AF stage(s)
Tuned circuits 6 AM circuit(s)
Wave bands Broadcast and Short Wave (SW).
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 5 inch = 12.7 cm
Power out 2 W (4 W max.)
from Radiomuseum.org Model: AL548H - Philips Argentina, FAPESA,
Material Wooden case
Shape Tablemodel, Mantel/Midget/Compact up to 14" width, but not a Portable (See power data. Sometimes with handle but for mains only).
Dimensions (WHD) 350 x 240 x 170 mm / 13.8 x 9.4 x 6.7 inch

Model page created by Heriberto Tavella. See "Data change" for further contributors.
