AL552H

AL552H; Philips Argentina, (ID = 2275045) Radio AL552H; Philips Argentina, (ID = 2275488) Radio

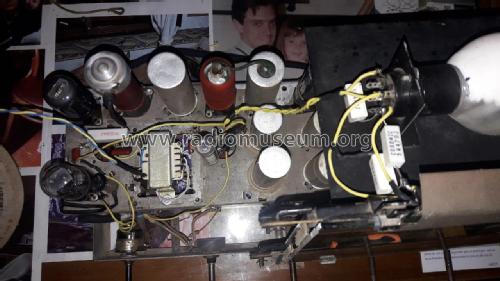

AL552H; Philips Argentina, (ID = 2275487) Radio AL552H; Philips Argentina, (ID = 2275050) Radio
AL552H; Philips Argentina, (ID = 2275486) Radio AL552H; Philips Argentina, (ID = 2275492) Radio
Use red slider bar for more.
AL552H; Philips Argentina, (ID = 2275045) Radio
Philips Argentina,: AL552H [Radio] ID = 2275045 1280x720
Select picture or schematic to display from thumbnails on the right and click for download.
For model AL552H, Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires:
Modelo de propiedad del Ing. Domingo Riccillo, de don Torcuato, Argentina

Country:  Argentina
Manufacturer / Brand:  Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires
Year: 1948 ?? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 7: PF9 PH4 PF9 PBF2 PM5_MagicEye 25L6 25Z6
Main principle Superhet with RF-stage; ZF/IF 454 kHz
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast plus more than 2 Short Wave bands.
Details
Power type and voltage AC/DC-set / 220 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 3 W (5 W max.)
from Radiomuseum.org Model: AL552H - Philips Argentina, FAPESA,
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 560 x 340 x 210 mm / 22 x 13.4 x 8.3 inch

Model page created by Heriberto Tavella. See "Data change" for further contributors.
