• Country
• Argentina

• Manufacturer / Brand
• Philips Argentina, FAPESA, Miniwatt tubes; Buenos Aires

• Year
• 1940/1941 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 318490

• Number of Tubes
• 6

• Valves / Tubes
• UCH4 UF9 UBF2 UL1 UM4 UY1 U1

• Main principle
• Superheterodyne (common); ZF/IF 475 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast plus more than 2 Short Wave bands.

• Power type and voltage
• AC/DC-set / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 inch = 17.8 cm

• Power out
• 3.5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org

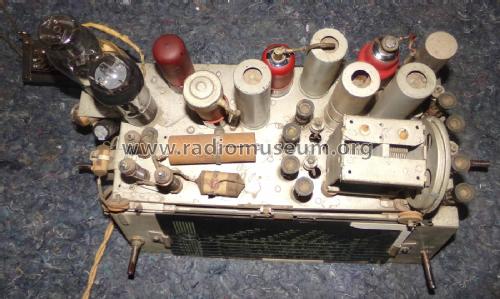

• Model: AL 643 H - Philips Argentina, FAPESA,

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 520 x 340 x 240 mm / 20.5 x 13.4 x 9.4 inch

• Author
• Model page created by Rodolfo Gaston Wenceslao Nasasta. See "Data change" for further contributors.
