• Country
• Italy

• Manufacturer / Brand
• Philips Italy; Milano (MI)

• Year
• 1927 ??

• Category
• Power supply/conditioner or battery or charger

• Radiomuseum.org ID
• 108691

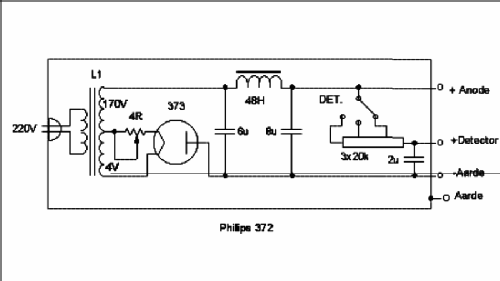

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 373

• Wave bands
• - without

• Details
• Power: B-Battery Eliminator

• Power type and voltage
• Alternating Current supply (AC) / 125 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material

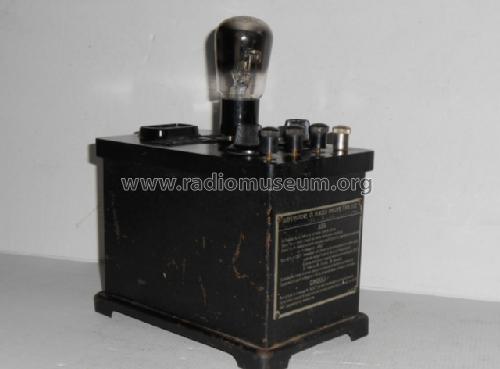

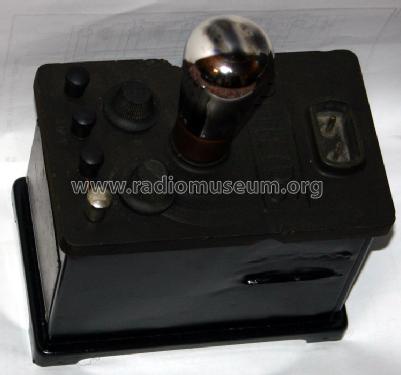

• Metal case, TUBES VISIBLE

• from Radiomuseum.org
• Model: Alimentatore di placca 372 - Philips Italy; Milano MI

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes
• Mobile in metallo con coperchio in bachelite.

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
