• Year
  • 1964 ?
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 313836

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 110-117; 127; 220; 245 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Material
  • Metal case
  • from Radiomuseum.org

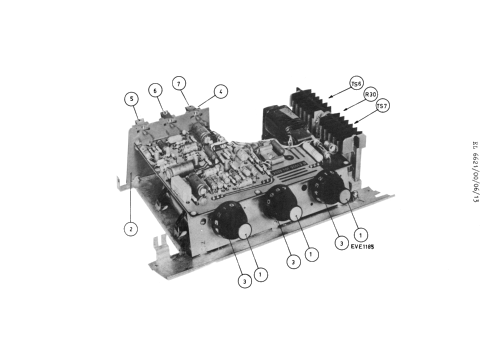

  • Model: Amplificador Transistorizado de 10 W EL 6621 /00 /06 /13 - Philips Ibérica, COPRESA,
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 300 x 90 x 220 mm / 11.8 x 3.5 x 8.7 inch
  • Notes
  • Philips Ibérica EL 6621 /00 /06 /13

    Amplificador Transistorizado de 10 W

    Versiones:

    • /00: Versión estandar.
    • /06: Sujección modificada del interruptor de tensión de red.
    • /13: Cordón de red modificado y ausencia de clavija de red.
  • Net weight (2.2 lb = 1 kg)
  • 2.6 kg / 5 lb 11.6 oz (5.727 lb)
  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
