Amplifier 25W PA 954

Amplifier 25W PA 954; Philips Australia (ID = 2395341) Ampl/Mixer Amplifier 25W PA 954; Philips Australia (ID = 2395342) Ampl/Mixer
Amplifier 25W PA 954; Philips Australia (ID = 2395343) Ampl/Mixer Amplifier 25W PA 954; Philips Australia (ID = 2395344) Ampl/Mixer
Use red slider bar for more.
Amplifier 25W PA 954; Philips Australia (ID = 2395341) Ampl/Mixer
Philips Australia: Amplifier 25W PA 954 [Ampl/Mixer] ID = 2395341 1179x768
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplifier 25W PA 954, Philips Australia:

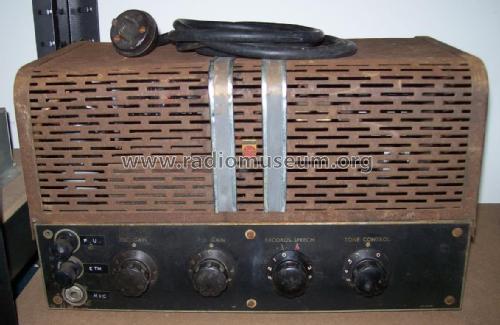

Philips 954 Front

Country:  Australia
Manufacturer / Brand:  Philips Australia
Year: 1947 Category: Audio Amplifier or -mixer
Valves / Tubes 6: 5V4G 6J7G 6J7G 6J7G 807 807
Main principle Audio-Amplification
Details
Power type and voltage Alternating Current supply (AC) / 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 25 W (max.)
from Radiomuseum.org Model: Amplifier 25W PA 954 - Philips Australia
Material Metal case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 420 x 230 x 230 mm / 16.5 x 9.1 x 9.1 inch
Notes

Date obtained from original Philips service manual for the series.

Model page created by Joshua Boxer. See "Data change" for further contributors.
