Amplifier F4212 /00 /05

Amplifier F4212 /00 /05; Philips Belgium (ID = 2025489) Ampl/Mixer

Amplifier F4212 /00 /05; Philips Belgium (ID = 2025491) Ampl/Mixer

Amplifier F4212 /00 /05; Philips Belgium (ID = 2025492) Ampl/Mixer

Amplifier F4212 /00 /05; Philips Belgium (ID = 2025493) Ampl/Mixer

Amplifier F4212 /00 /05; Philips Belgium (ID = 2025495) Ampl/Mixer

Amplifier F4212 /00 /05; Philips Belgium (ID = 2025496) Ampl/Mixer

Amplifier F4212 /00 /05; Philips Belgium (ID = 2025502) Ampl/Mixer

Amplifier F4212 /00 /05; Philips Belgium (ID = 2025503) Ampl/Mixer

Amplifier F4212 /00 /05; Philips Belgium (ID = 2025504) Ampl/Mixer

Amplifier F4212 /00 /05; Philips Belgium (ID = 2025505) Ampl/Mixer
Amplifier F4212 /00 /05; Philips Belgium (ID = 2026584) Ampl/Mixer Amplifier F4212 /00 /05; Philips Belgium (ID = 2026585) Ampl/Mixer
Amplifier F4212 /00 /05; Philips Belgium (ID = 2026587) Ampl/Mixer Amplifier F4212 /00 /05; Philips Belgium (ID = 2025486) Ampl/Mixer
Use red slider bar for more.
Amplifier F4212 /00 /05; Philips Belgium (ID = 2026584) Ampl/Mixer
Philips Belgium: Amplifier F4212 /00 /05 [Ampl/Mixer] ID = 2026584 1200x410
Select picture or schematic to display from thumbnails on the right and click for download.
For model Amplifier F4212 /00 /05, Philips Belgium (Belgien):
ebay.it #152216860474 seller balivahi-fi

Country:  Belgium
Manufacturer / Brand:  Philips Belgium (Belgien)
Year: 1982 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 7: BC547 BC640 BC640 BC556 BC556 BC337 BC548 AN7060 AN7060 STK2129
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 110; 127; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 64 W (unknown quality)
from Radiomuseum.org Model: Amplifier F4212 /00 /05 - Philips Belgium Belgien
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 420 x 80 x 300 mm / 16.5 x 3.1 x 11.8 inch
Notes

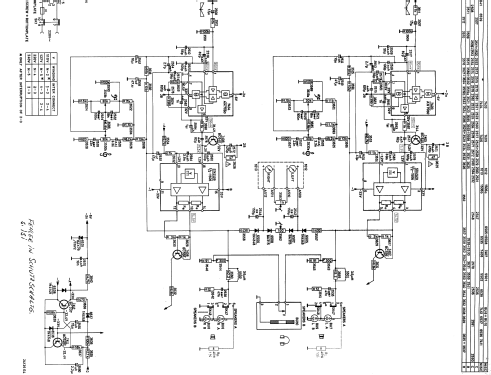

The technical document mentions an 8th transistor type BC547 which is not present on the schematic.

Mentioned in -- Original-techn. papers.

Model page created by Heiko zur Mühlen. See "Data change" for further contributors.



All listed radios etc. from Philips Belgium (Belgien)
Here you find 323 models, 300 with images and 161 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
