Arabesque 802A

Arabesque 802A; Philips; Eindhoven (ID = 39671) Radio

Arabesque 802A; Philips; Eindhoven (ID = 39672) Radio

Arabesque 802A; Philips; Eindhoven (ID = 456941) Radio
Arabesque 802A; Philips; Eindhoven (ID = 2394078) Radio Arabesque 802A; Philips; Eindhoven (ID = 2394079) Radio
Arabesque 802A; Philips; Eindhoven (ID = 2394077) Radio Arabesque 802A; Philips; Eindhoven (ID = 2394080) Radio
Arabesque 802A; Philips; Eindhoven (ID = 2394084) Radio Arabesque 802A; Philips; Eindhoven (ID = 2394083) Radio

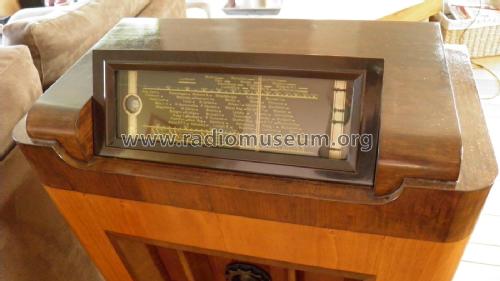

Arabesque 802A; Philips; Eindhoven (ID = 2394082) Radio Arabesque 802A; Philips; Eindhoven (ID = 2394081) Radio

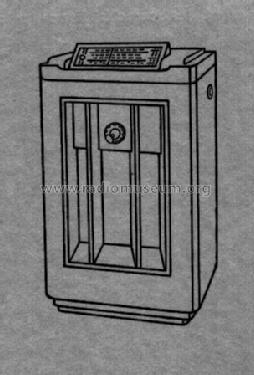

Arabesque 802A; Philips; Eindhoven (ID = 223427) Radio Arabesque 802A; Philips; Eindhoven (ID = 99839) Radio
Use red slider bar for more.
Arabesque 802A; Philips; Eindhoven (ID = 2394078) Radio
Philips; Eindhoven: Arabesque 802A [Radio] ID = 2394078 1173x1329
Select picture or schematic to display from thumbnails on the right and click for download.
For model Arabesque 802A, Philips; Eindhoven (tubes international!); Miniwatt:
Radio from my own collection

Country:  Netherlands
Manufacturer / Brand:  Philips; Eindhoven (tubes international!); Miniwatt
Year: 1937/1938 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 6: EK2 EF5 EBC3 EBL1 AZ1 EM1
Main principle Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s)
Tuned circuits 7 AM circuit(s)
Wave bands Broadcast, Long Wave and Short Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110; 125; 145; 200; 220; 245 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Arabesque 802A - Philips; Eindhoven tubes
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 560 x 980 x 280 mm / 22 x 38.6 x 11 inch
Notes Chassis like 750A. With bakelite tip-up tuning dial.
Price in first year of sale 249.00 hfl
Source of data Overzicht v.de toe te p PHILIPS
Mentioned in Technisch- Commercieel - Radio Vademecum Staleman

Model page created by Iven Müller. See "Data change" for further contributors.
