Atlas D12 (A)

Atlas D12 ; Philips Radios - (ID = 40363) Radio

Atlas D12 ; Philips Radios - (ID = 40364) Radio

Atlas D12 ; Philips Radios - (ID = 5320) Radio
Atlas D12 ; Philips Radios - (ID = 102604) Radio Atlas D12 ; Philips Radios - (ID = 102607) Radio
Atlas D12 ; Philips Radios - (ID = 102608) Radio Atlas D12 ; Philips Radios - (ID = 102609) Radio
Atlas D12 ; Philips Radios - (ID = 102610) Radio
Use red slider bar for more.
Atlas D12 ; Philips Radios - (ID = 102604) Radio

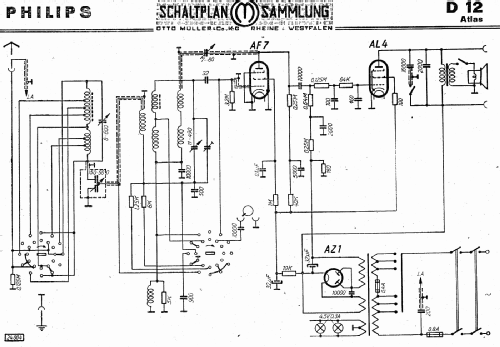

Philips Radios -: Atlas D12 [Radio] ID = 102604 837x495
Select picture or schematic to display from thumbnails on the right and click for download.
For model Atlas D12 (A), Philips Radios - Deutschland

Country:  Germany
Manufacturer / Brand:  Philips Radios - Deutschland
Brand

Deutsche Philips-Ges.
Year: 1936/1937 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 3: AF7 AL4 AZ1
Main principle TRF with regeneration; 1 AF stage(s)
Tuned circuits 1 AM circuit(s)
Wave bands Broadcast (MW) and Long Wave.
Details
Power type and voltage Alternating Current supply (AC) / 110-240 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Atlas D12 - Philips Radios - Deutschland
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 570 x 280 x 260 mm / 22.4 x 11 x 10.2 inch
Net weight (2.2 lb = 1 kg) 10.5 kg / 23 lb 2 oz (23.128 lb)
Price in first year of sale 155.00 RM
Source of data HandB.d.d.Rundfunk-Handels 1936/37 / Radiokatalog Band 1, Ernst Erb
Circuit diagram reference Lange+Schenk+FS-Röhrenbestückung
Picture reference Das Gerät ist im Doppelband "Historische Radios" von Günther Abele abgebildet.
